HMC8342LS6 is a gallium arsenide (GaAs) single-chip microwave integrated circuit (MMIC) ×2 active broadband frequency multiplier. When driven by a 5 dBm signal, the multiplier provides a typical output power of 15 dBm. The output frequency range is 22 GHz to 42 GHz, with input fundamental and third harmonic isolation measured at the output of −23 dBc and −20 dBc, respectively (at an output frequency of 30 GHz).

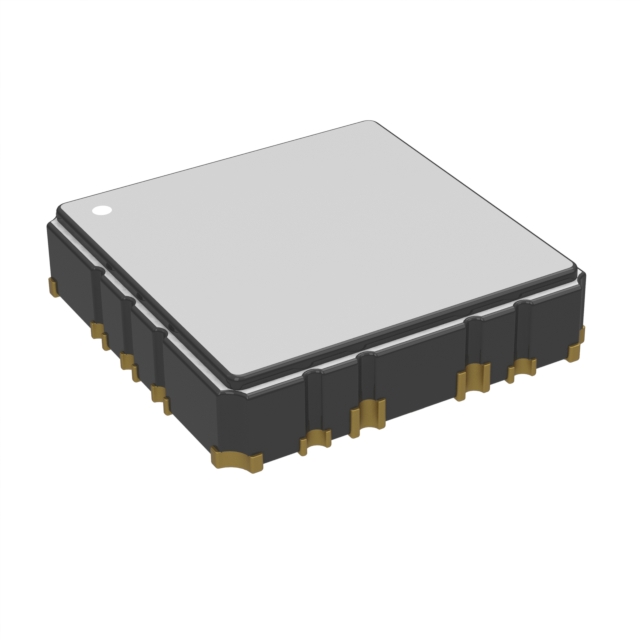

HMC8342LS6 — GaAs MMIC ×2 active frequency multiplier, 22 GHz to 42 GHz output

Model: HMC8342LS6

Package: CLCC-16

Type: Frequency multiplier

The HMC8342LS6 is ideal for use in LO frequency multiplier chains in point-to-point and VSAT radios, reducing the number of components compared to traditional design methods.

HMC8342LS6 Specifications:

Function: Frequency multiplier

Frequency: 22 GHz to 42 GHz

RF Type: General purpose

Additional Attributes: Active frequency multiplier

Mounting Type: Surface mount

Package/Housing: 16-CLCC bare pad

Supplier Device Package: 16-CLCC-HS (6x6)

HMC8342LS6 Product Features:

High Output Power: 15 dBm (typical, at RFIN = 16 GHz)

Low Input Power Drive: 5 dBm (typical)

Fundamental RF Input Isolation at RF Output: −23 dBc (at RFOUT = 30 GHz)

16-pin, 6 mm × 6 mm LCC_HS package, 36 mm²
