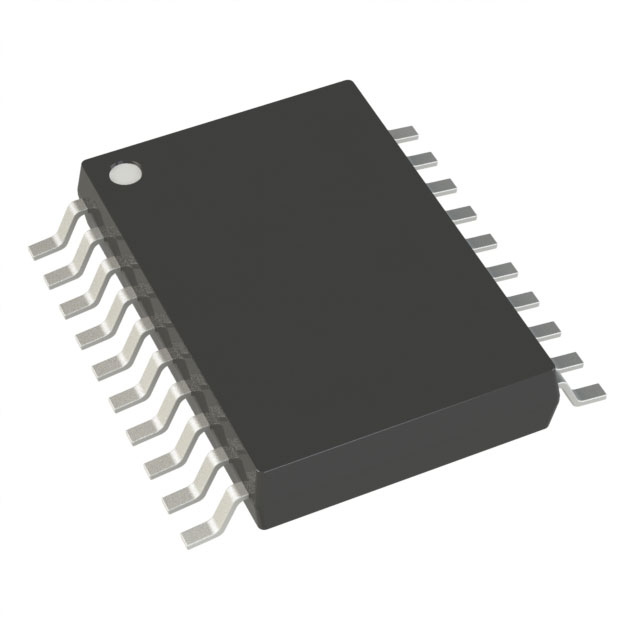

 [ADI] AD5930YRUZ Direct Digital Frequency Synthesiser (DDS) — Programmable Frequency Scanning and Burst Waveform Generator, TSSOP-20

Model: AD5930YRUZ

Package: DFN-16

Type: Direct Digital Frequency Synthesiser (DDS)

Description: Direct Digital Synthesis IC 10-bit 50 MHz 24-bit Tuning 20-TSSOP

Description:

The AD5930YRUZ is a waveform generator that supports programmable frequency scanning and burst output functionality. The device utilises embedded digital processing technology with enhanced frequency control capabilities to generate synthesised analogue or digital frequency step waveforms. The AD5930YRUZ writes data via a three-wire serial interface and can operate at clock rates up to 40 MHz. The device is powered by a 2.3 V to 5.5 V supply and includes a standby mode that can disable unused portions of the device.

AD5930YRUZ Product Features:

Programmable frequency profiles without external components

Output frequencies up to 25 MHz

Pre-programmable frequency profiles minimise the number of times the DSP/microcontroller needs to write sine wave/triangle wave/square wave outputs

Automatic or single-pin control of frequency steps

Burst and listen functions

Waveforms start from a known phase and increase in 0° increments or continuously

Shutdown mode: 20 µA

Power supply: 2.3 V to 5.5 V

Automotive application temperature range:

-40°C to +125°C

20-pin lead-free TSSOP package
