The AD5412ACPZ is a low-cost, precise, fully integrated 16-bit digital-to-analog converter (DAC) with a built-in programmable current source and programmable voltage output, designed to meet the needs of industrial process control applications.

Key features

16-bit resolution and monotonicity

Current output range: 4 mA to 20 mA; 0 mA to 20 mA; 0 mA to 24 mA

Total non-adjustment error (TUE) : ± 0.01% (typical value, FSR)

Output drift: ±3 ppm/°C

Voltage output range: 0V to 5V; 0 V to 10 V ± 5V; ±10 V

Over-range: 10%

Total non-adjustment error (TUE) : ± 0.01% (typical value, FSR)

Output drift: ±2 ppm/°C

Flexible serial digital interface

On-chip output fault detection

On-chip reference voltage source: 10 ppm/°C (maximum value)

Optional regulated DVCC output

Asynchronous reset function

Power supply range

AVDD: 10.8V to 40V

AVSS: -26.4V to -3V/0V

Output loop compliance voltage: AVDD - 2.5V

Temperature range: -40 °C to +85°C

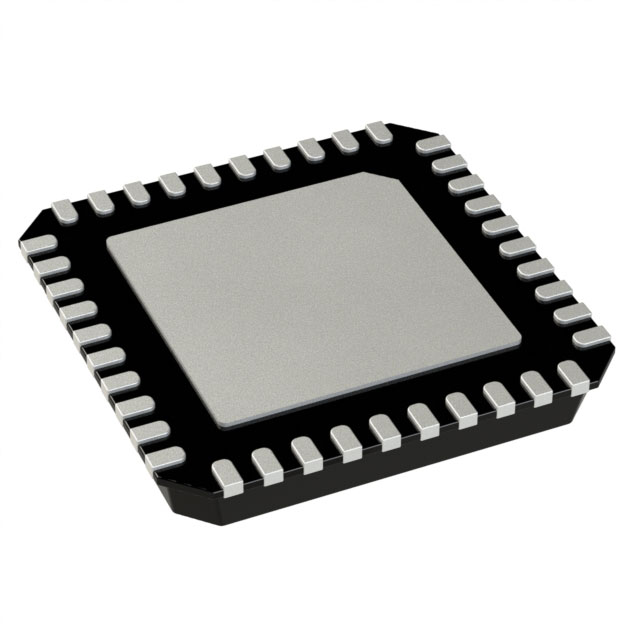

40-pin LFCSP package

The AD5412ACPZ also includes a power-on reset function to ensure that the device is powered on under known conditions. This device also features an asynchronous CLEAR pin (CLEAR), which can set the output to zero level/intermediate level voltage output or to the lower end of a selected current range.

In both current mode and voltage mode, the typical total output error value is ±0.01%.

Applications

- Process control

- Actuator control

- PLC

- HART network connection (LFCSP package only)
