For picture reference, please see the specifications
< >

Commodity Model:MAX5353BCUA

Trade Name:Digital to Analog Converters (DAC)

Brand:Maxim

Particular Year:25+

Package:UMAX-10

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX5353BCUA
Package
UMAX-10
Describe
Single-channel, serial interface, voltage output, 12-bit digital-to-analog converter (DAC)

Product Description

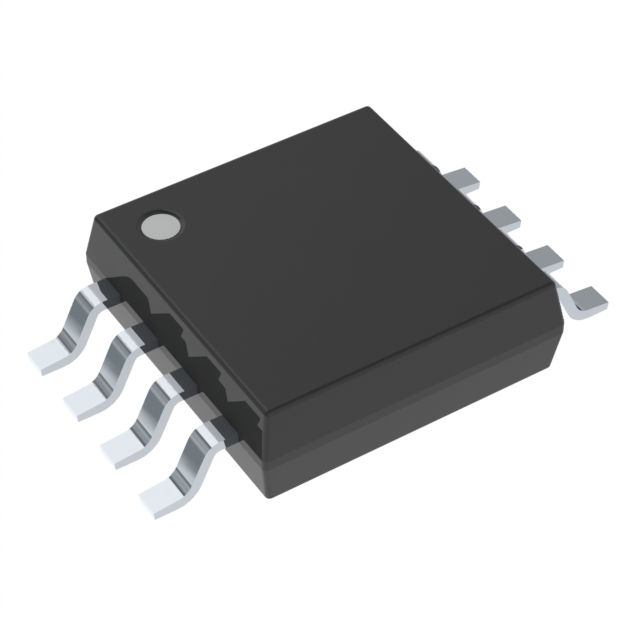

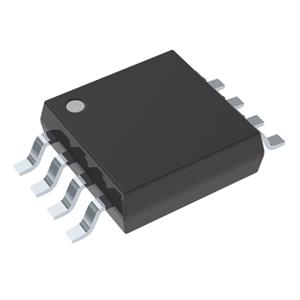

The MAX5353BCUA device integrates low power consumption, voltage output, a 12-bit digital-to-analog converter (DAC), and a precision output amplifier, and is available in an 8-pin µMAX® package. The MAX5353BCUA is powered by a single +3.3V supply. The power current consumption of this device is less than 280µA.


The inverting input of the output amplifier enables users to achieve specific gain configurations, remote detection and high output current capabilities. Therefore, the MAX5353BCUA is highly suitable for a variety of applications, including industrial process control. Other features include software shutdown and power-on reset.


Technical parameters

Number of digits: 12

Number of digital-to-analog converters: 1

Establishment time: 14µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, analog: 3.15V to 3.6V

Voltage - power supply, number: 3.15V - 3.6V

INL/DNL (LSB) : ±2 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: 0°C to 70°C

Packaging/Housing: 8-uMAX/uSOP

Installation type: Surface mount type


Typical applications

Digital gain and offset control

General products

Industrial process control

Motion control

Remote industrial control


Associated Products

Model

Brand

Package

Quantity

Describe

AD5694ARUZ

ADI

TSSOP-16

3000

Four-channel, 12-bit nanoDAC+™ (with I2C interface) digital-to-analog converter

AD9714BCPZ

ADI

LFCSP-40

3000

Dual-channel, 8-bit low-power digital-to-analog converter (DAC)

AD7243BRZ

ADI

SOIC-16

3000

Single-channel, 12-bit voltage output digital-to-analog converter (DAC)

AD5726YRWZ

ADI

SOIC-16

3000

Four-channel, 12-bit, serial input, unipolar/bipolar, voltage output DAC

AD5541JRZ

ADI

SOIC-8

3000

Single-channel, serial input, 16-bit digital-to-analog converter (DAC)

AD5392BSTZ-5

ADI

LQFP-52

2500

8-channel, 3V / 5V serial input, single power supply, 14-bit voltage output DAC

AD5422BREZ

ADI

TSSOP-24

3000

Single-channel, 16-bit, current source and voltage output DAC, HART connection

AD5412ACPZ

ADI

LFCSP-40

3000

Single-channel, 16-bit, current source and voltage output DAC, HART connection

AD7398BRUZ

ADI

TSSOP-16

3000

Four-channel, serial input, 12-bit digital-to-analog converter (DAC)

AD5686RBRUZ

ADI

TSSOP-16

3000

Four-channel, 16-bit rail-to-rail voltage output digital-to-analog converter (DAC)
