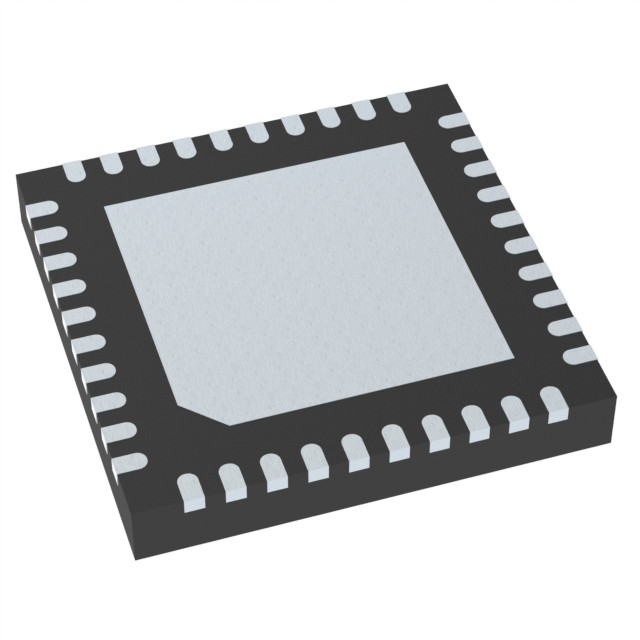

The 9DBU0641AKILF is a member of the 1.5V Ultra-Low Power (ULP) PCIe family. It features an integrated output terminal that offers Zo=100 ohms and can be directly connected to a 100-ohm transmission line. The 9DBU0641AKILF features six output enables for clock management and three optional SMBus addresses. The main specifications of the 9DBU0641AKILF are as follows:

The DIF jitter during the cycle is less than 50ps

• DIF output to output offset <60ps

The DIF phase jitter complies with the PCIe Gen1-2-3 standard

The additive phase jitter in the DIF bypass mode of PCIe Gen3 is less than 300fs rms

• DIF bypass mode additive phase jitter <350fs rms for 12k-20MHz

Basic parameters

Product: 9DBU0641AKILF

Type: Clock buffer

PLL: Yes

Main use: PCI Express (PCIe)

Input: HCSL

Output: LP-HCSL

Number of circuits: 1

Ratio - Input: Output: 1:6

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 167MHz

Voltage - Power supply: 1.425V to 1.575V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 40-VFQFN
