The R7F102GBE3CNP device is a member of the RL78/G22 MCU series launched by (Renesas). It features an RL78 core with a maximum clock speed of 32MHz and supports a wide voltage range from 1.6V to 5.5V. The R7F102GBE3CNP adopts a compact package and is equipped with up to 29 capacitive touch sensor channels. The brand-new multi-electrode connection function (MEC) can shorten the touch detection and measurement time during standby and further reduce power consumption. The RL78/G22 is equipped with sensors featuring high noise resistance and high sensitivity, which are compatible with a variety of materials. This enables the RL78/G22 to offer touch and non-touch interfaces that integrate functionality and design, contributing to a hygienic and comfortable lifestyle.

Core parameters

Core processor: RL78

Kernel specification: 16 bits

Speed: 32MHz

Connection capabilities: CSI, I2C, LINbus, SPI, UART/USART

Peripherals: LVD, POR, PWM, WDT

I/O number: 27

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: 2K x 8

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 1.6V to 5.5V

Data converter: A/D 8x8/10b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

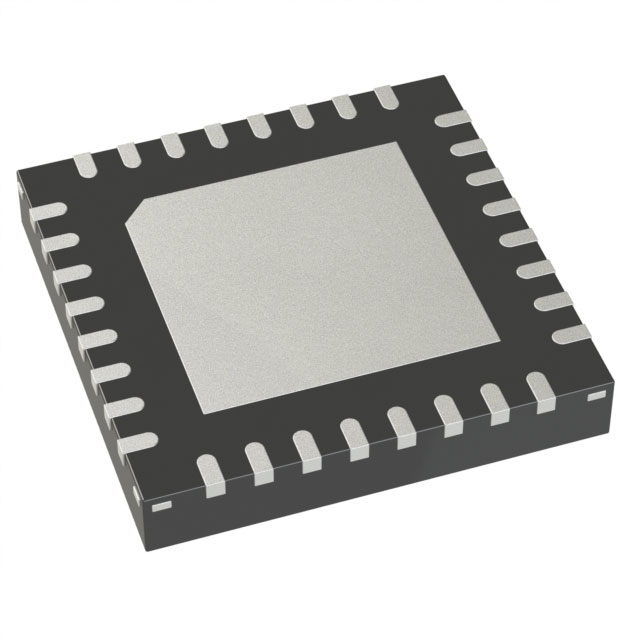

Package: 32-HWQFN (5x5)

Target application

Applications related to human-machine interfaces

Smart lock

Smart toilet

Household appliances

Industrial field

Internet of Things sensor
