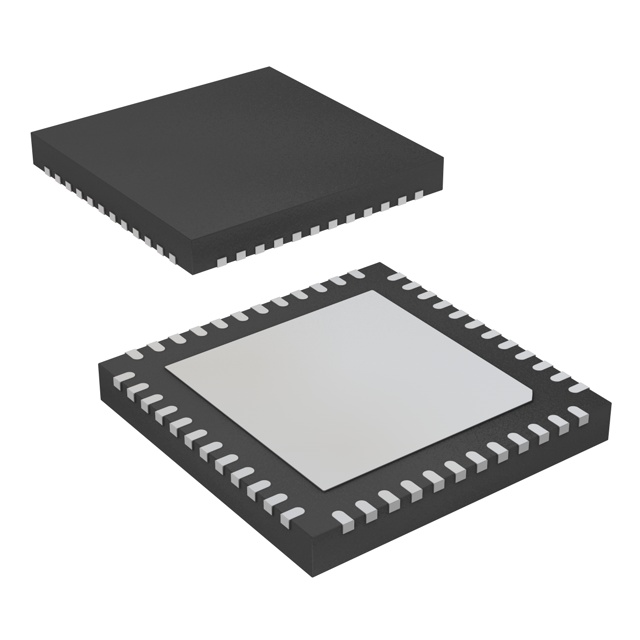

DAC7718SRGZ: Eight-Channel, Low-Power, 12-Bit Output Serial-Input Digital-to-Analogue Converter, VQFN-48

BASIC INFORMATION:

MODEL: DAC7718SRGZ

PACKAGING: VQFN-48

TYPE: Digital-to-Analogue Converter (DAC)

DAC7718SRGZ Product Features:

Bipolar Output: ±2V to ±16.5V

Unipolar Output: 0V to +33V

12-bit Resolution

Low Power Consumption: 14.4mW/Ch (Bipolar Supply)

Relative Accuracy: 1 LSB max

Low Zero/Full Scale Error: ±1 LSB max

Flexible System Calibration

Low Flash Difference: 4nV-s

Setup Time: 15µs

Channel Monitor Outputs

Programmable Gain: x4/x6

Programmable Offset

SPI: Up to 50MHz, 1.8V/3V/5V Logic

The DAC7718SRGZ is a low-power, octal, 12-bit digital-to-analogue converter (DAC). The DAC provides low-power operation, good linearity, and low flicker over the specified -40°C to +105°C temperature range. The device is fine-tuned during fabrication for extremely low zero and gain errors. System-level calibration of the entire signal chain is also available. The output range can be offset via the DAC offset register.
