The DAC60508ZRTER is a member of a pin-compatible family of low-power, eight-channel, buffered voltage output digital-to-analog converters (DACs) with 12-bit resolution.The DAC60508ZRTER includes a 2.5V (5ppm/°C) internal base voltage reference, eliminating the need for an external precision reference in most applications. User-selectable gain configurations provide full-scale output voltages of 1.25V (gain = ½), 2.5V (gain = 1), or 5V (gain = 2). Powered from a single 2.7V to 5.5V supply, the device is monotonic and provides high linearity of ±1 LSB INL.

Product Details:

Model No.: DAC60508ZRTER

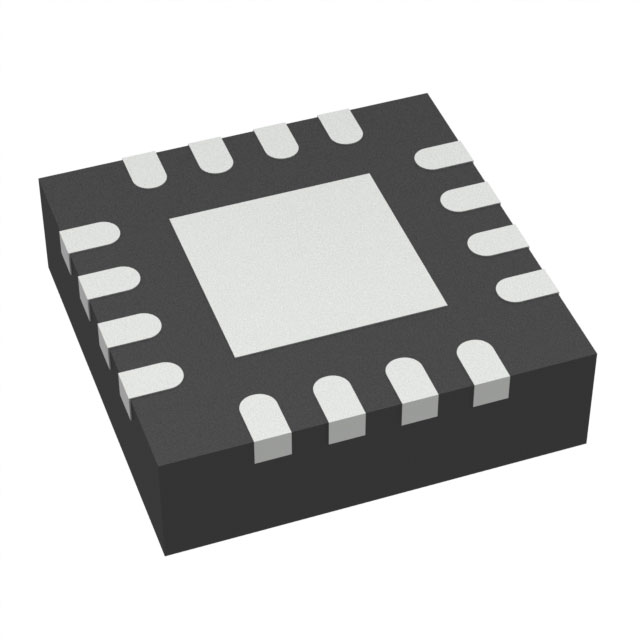

Package: WQFN-16

Type: Digital-to-Analogue Converter (DAC)

Number of Bits: 12

Number of Analogue-to-Digital Converters: 8

Build-Up Time: 5µs (Typical)

Output Type: Voltage - Buffered

Differential Outputs: None

Data Interfaces : SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 1.7V ~ 5.5V

INL/DNL (LSB): ±0.5, ±0.5

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C (TA)

Package/Case: 16-WFQFN Unpadded pads

Vendor Device Packages: 16- WQFN (3x3)

Mounting Type: Surface Mount

DAC60508ZRTER PRODUCT FEATURES:

Performance

INL: ±1LSB, maximum at 16-bit resolution

TUE: FSR ±0.1% maximum

Integrated 2.5V precision internal reference

Initial Accuracy: ±5mV (maximum)

Low Temperature Drift: 2ppm/°C (Typical) with the DAC80508

High Drive Capability: 20mA, 0.5V supply rail

Flexible Output configurations

User selectable gain: 2, 1 or ½

Reset to zero or mid-scale

Clear output function: DACx0508C

Wide operating range:

Supply voltage: 2.7V to 5.5V

Temperature range: -40˚C to 125˚C

50MHz SPI-compatible serial interface

1.7V to 5.5V operation

Daisy-chain mode of operation

CRC Error checking

Low power consumption: 0.6mA/channel (5.5V)
