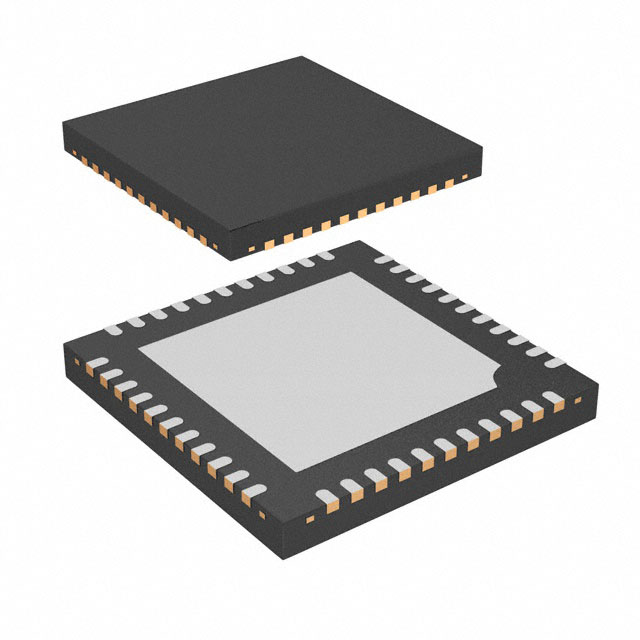

The LTC3877EUK is a VID programmable, constant-frequency current-mode step-down controller that adopts an advanced and proprietary architecture. This new architecture can improve the signal-to-noise ratio of the current detection signal, thus allowing the use of very low DC resistance power inductors to maximize efficiency in high-current applications. This feature also significantly reduces the current detection error, thereby greatly improving the current sharing in multiphase low DCR applications. In addition, the LTC3877EUK achieves a minimum conduction time of only 40ns, thus allowing for the use of high switching frequencies under high step-down ratio conditions.

The main features of LTC3877EUK include:

The 6-bit parallel VID (voltage recognition) input can set the output voltage from 0.6V to 1.23V (10mV step).

Output voltage range: 0.6V to 5V (without VID)

Ultra-low value DCR/RSENSE current detection

It provides a maximum total regulation voltage accuracy of ±1% across the entire temperature range

Dual-channel differential remote sampling amplifier

tON(MIN) = 40ns, which can provide a very low duty cycle at high frequencies

Phase-locked frequency range: 250kHz to 1MHz

Current distribution between channels: 5% (maximum value)

Adjustable soft start current ramp rise or tracking

Multi-ic operation: up to 12 phases

Wide VIN range: 4.5V to 38V

Dual-channel power supply good output voltage monitor

Output overvoltage protection

Return output current limit and soft recovery

The application fields of LTC3877EUK include:

FPGA and processor power supply

Servers and Computing
