Trade Name:Operational Amplifier
Brand:ADI
Particular Year:25+

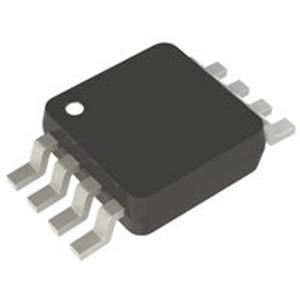

Package:MSOP-8
Delivery Date:New and Original
Stock: 2000pcs
The LT6023HMS8 is a dual-channel, low-power, precision rail-to-rail output operational amplifier in an 8-MSOP (3×3mm) package, specifically designed for low-power, high-precision signal conditioning. The chip features a 1V/µs slew rate, 40kHz gain-bandwidth product, and extremely low input bias current (100pA), making it suitable for applications such as portable devices, industrial sensors, and medical instruments.
LT6023HMS8 Features
Exceptional slew rate-to-power ratio
Slew rate: 1.4V/μs
Maximum supply current: 20μA per amplifier
Maximum offset voltage: 30μV
Maximum offset voltage drift: 2.9 μV/°C
High dynamic input impedance
Fast recovery from shutdown mode
Maximum input bias current: 3 nA
No output inversion
Gain-bandwidth product: 40 kHz
Wide specified supply voltage range: 3 V to 30 V
Operating temperature range: -40°C to 125°C
Rail-to-rail output
Specifications
Model: LT6023HMS8
Brand: ADI
Package: 8-MSOP (3×3mm)
Number of amplifiers: Dual-channel
Gain-bandwidth product (GBP): 40kHz
Slew rate (SR): 1V/µs
Input offset voltage: 5µV (typical)
Input bias current: 100pA
Output current: 15mA per channel
Supply voltage: 3V to 30V (single supply) / ±1.5V to ±15V (dual supply)
Quiescent current: 18µA (dual channel)
Operating temperature: -40°C to +125°C
Model
Brand
Package
Quantity
Describe
ADI
MSOP-8
2000
Dual-channel, low-power, 1.4 V/μs, precision rail-to-rail output amplifier
ADI
DFN-10
2000
Dual-channel, low-power, 1.4 V/μs, precision rail-to-rail output amplifier
ADI
DFN-10
2000
Dual-channel, low-power, 1.4 V/μs, precision rail-to-rail output amplifier
TI
SC70-6
5000
Low-power, precision, 50MHz decoupled CMOS operational amplifier for cost-sensitive systems
