The LTC3371IFE is a highly flexible multi-output power IC. This device comprises four synchronous step-down converters configured to share eight 1A power stages, all powered by independent inputs ranging from 2.25V to 5.5V.

The main features of LTC3371IFE include:

The 8 x 1A step-down power stage can be configured with 2, 3 or 4 output channels

Eight unique output configurations (each channel ranging from 1A to 4A)

Independent VIN power supply for each DC/DC (2.25V to 5.5V)

Low total value of no-load power supply current:

In the shutdown mode, it is 15μA (all channels are turned off).

When A channel is in the Burst Mode® operating state, it is 68μA

Each additional channel is 18μA

Enable pin thresholds for autonomous sorting

1MHz to 3MHz RT programmable frequency (2MHz default value) or PLL synchronization

The temperature monitor can indicate the temperature of the chip

Ct-programmed watchdog timer

The independent RST pin indicates that the voltage reduction is in the regulated state

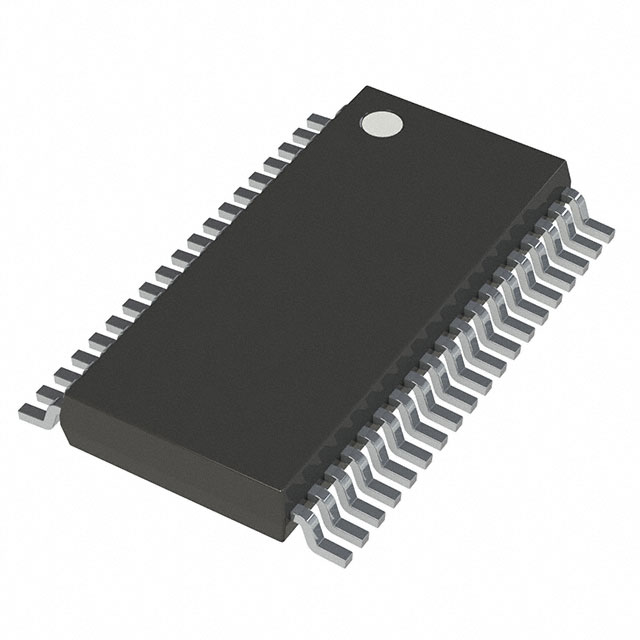

38-pin 5mm x 7mm QFN package and TSSOP package

These features make the LTC3371IFE widely used in general-purpose multi-channel power supplies: automotive, industrial, and distributed power systems.
