The LTC7892AUJM is a high-performance dual boost DC-DC switch-mode regulator controller capable of driving all N-channel synchronous gallium nitride (GaN) field-effect transistors (FETs) in the power stage, with output voltages up to 100V.

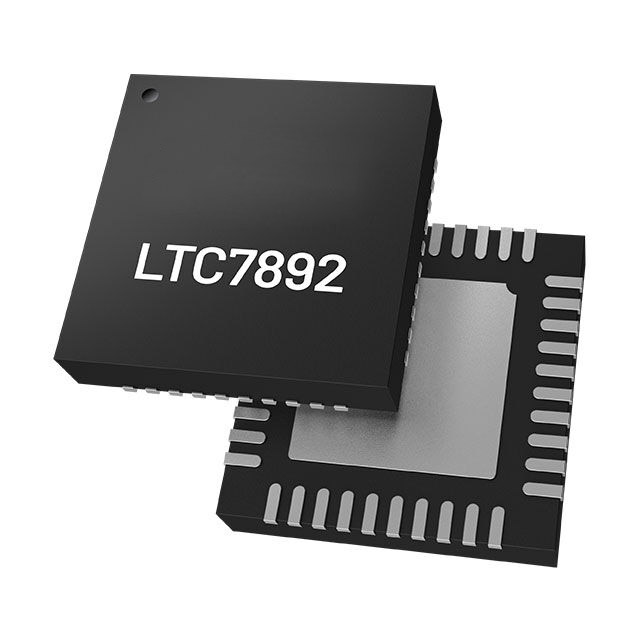

Model: LTC7892AUJM

Package: QFN-40

Type: Synchronous boost controller

Description: LTC7892AUJM — Low IQ, dual-channel, dual-phase synchronous boost controller for GaN FETs

LTC7892AUJM specifications:

Output type: Transistor driver

Function: Boost

Output configuration: Positive

Topology: Boost

Number of outputs: 1

Output Stages: 2

Voltage - Supply (Vcc/Vdd): 4V to 60V

Frequency - Switching: 100kHz to 3MHz

Duty Cycle (Maximum): 93%

Synchronous Rectifier: Yes

Clock Synchronisation: Yes

Control Features: Current Limit, No-Load Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start

Operating Temperature: -40°C to 125°C (TJ)

Mounting Type: Surface Mount, Wettable Flanks

Package/Case: 40-WFQFN Bare Pad

Supplier Device Package: 40-QFN (6x6)

LTC7892AUJM Product Features:

GaN driver technology fully optimised for GaN FETs

Output voltage up to 100V

Wide VIN range: 4V to 60V, with a low operating voltage as low as 1V after startup

No need for current loop, clamping, or cathode load diodes

Internal intelligent bootstrap switch prevents overcharging of the high-side driver power supply

Resistor-adjustable dead-time

Adjustable on/off driver strength with shunt output gate driver

Precise adjustable driver voltage and UVLO

Low operating IQ: 15μA

Programmable frequency (100kHz to 3MHz)

Synchronisable frequency (100kHz to 3MHz)

Spread spectrum (SSFM)

40-pin (6 mm × 6 mm), side-wettable QFN package
