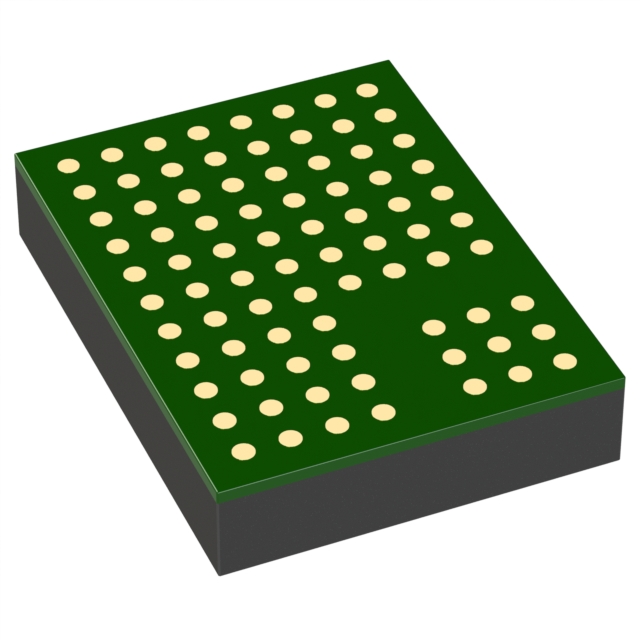

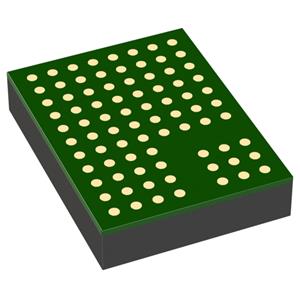

LTM8026EV: 36VIN, 5A CVCC μModule Buck Regulator, LGA-81

The LTM8026EV is a 36VIN, 5A constant voltage, constant current (CVCC) buck-type μModule® regulator. The package integrates a switch controller, power switch, inductor, and supporting components. The LTM8026EV operates over a 6V to 36V input voltage range and supports an output voltage range of 1.2V to 24V. CVCC operation enables the LTM8026EV to accurately regulate its output current up to 5A across the entire output range. The output current can be set using a control voltage, a single resistor, or a thermistor. A complete design can be achieved using only resistors for setting the output voltage and frequency, along with high-capacity input and output filter capacitors.

LTM8026EV Product Features:

Complete buck-type switch-mode power supply

Constant voltage constant current operation

Selectable output current up to 5A

Can be paralleled to increase output current, even with different voltage sources

Wide input voltage range: 6V to 36V

1.2V to 24V output voltage

Selectable switching frequency: 100kHz to 1MHz

SnPb or RoHS compliant coating

Programmable soft start

LGA (11.25mm x 15mm x 2.82mm) package

LTM8026EV applications:

Supercapacitor charging

General industrial

Extreme short-circuit protection or precise output current limiting

Microcontroller-based battery charging

High-power LED driving

Multi-input, single-output voltage conversion
