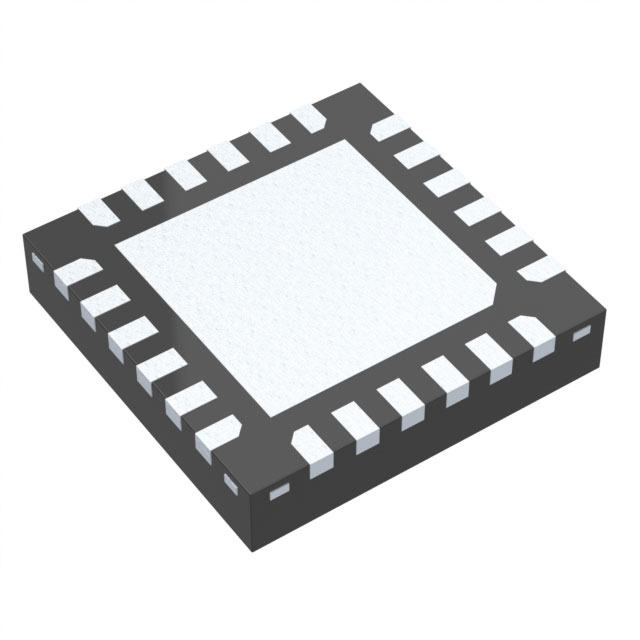

For picture reference, please see the specifications
< >

Commodity Model:HMC575LP4E

Trade Name:Frequency Multipliers

Brand:ADI

Particular Year:25+

Package:QFN-24

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC575LP4E
Package
QFN-24
Describe
SMT GaAs MMIC x2 active frequency multiplier, 6-9GHz output

Product Description

The HMC575LP4E is an x2 active broadband multiplier utilising GaAs PHEMT technology in a RoHS-compliant, lead-free SMT package. When driven by a 3 dBm signal, this multiplier provides a typical output power of +17 dBm, operating at frequencies from 6 to 9 GHz. The isolation between the output signal level and Fo and 3Fo is 15 dBc.


This HMC575LP4E multiplier features DC-blocking I/O, making it ideal for use in LO multiplier chains in point-to-point and VSAT radio applications, reducing the number of components compared to traditional methods. Low additive SSB phase noise of -140 dBc/Hz at 100 kHz bias helps maintain excellent system noise performance. The HMC575LP4E is compatible with surface mount manufacturing technology.


HMC575LP4E Features

High output power: +17 dBm

Low input power drive: -2 to +6 dBm

FO, 3FO isolation: 15 dBc

100 kHz SSB phase noise: -140 dBc/Hz

Single power supply: +5V (90 mA)

RoHS-compliant 4x4 mm SMT package


HMC575LP4E Applications:

• Wireless local loops

• Point-to-point and VSAT radios

• Test instruments

• Military and aerospace applications

Associated Products

Model

Brand

Package

Quantity

Describe

HMC8342LS6

ADI

CLCC-16

5500

GaAs MMIC ×2 active frequency multiplier, 22 GHz to 42 GHz output

HMC942LP4E

ADI

QFN-24

2000

SMT GaAs MMIC x2 active frequency multiplier, 25-31GHz output

HMC695LP4E

ADI

QFN-24

3000

Frequency Multiplier - 11.4GHz to 13.2GHz Output, x4 Active Multiplier

HMC1096LP3E

ADI

QFN-16

3000

GaAs pHEMT MMIC x2 Active Frequency Multiplier, QFN-16
