The LMK3H0102V18RERR is a dual-output no-reference clock generator that complies with the PCIe Gen 1 to Gen 6 standards and supports spread spectrum Clock (SSC). It is based on TI's proprietary bulk acoustic wave (BAW) technology and can provide ±25ppm clock output without any crystal or external clock reference. The LMK3H0102V18RERR can simultaneously provide 2 SSC clocks, 2 non-SSC clocks, or provide 1 SSC clock and 1 non-SSC clock simultaneously.

Technical Specification

PLL: None

Main application: PCI Express (PCIe)

Input: -

Output: LP-HCSL, LVCMOS, LVDS

Number of circuits: 1

Ratio - Input: Output: 0:2

Differential - Input: Output: None/Yes

Frequency - Maximum value: 400MHz

Voltage - Power supply: 1.71V - 1.89V, 2.375V - 2.625V, 3.135V - 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

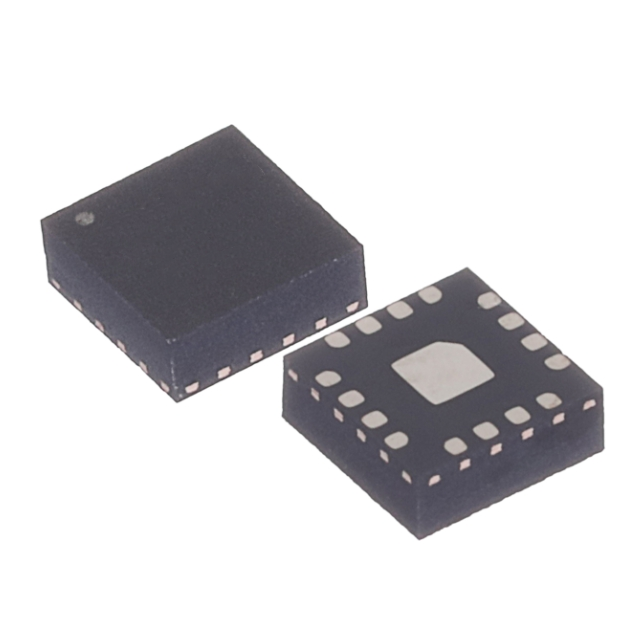

Package/Shell: 16-TFQFN

Application scenarios

The LMK3H0102V18RERR is widely used in various scenarios that require high-precision clocks, including:

PCIe Gen 1 to Gen 6 clock generation

Server motherboard

NIC, SmartNIC

Hardware accelerator

Multifunctional printer

PCIe SSD

Additional cards, PCIe expansion cards
