The 9FGL6241AP201NDGI is an intelligent buffer/clock generator launched by (Renesas), mainly applied to the optimization of PCI Express (PCIe) signal transmission. The following are the key features:

Automatically detect whether the input clock exists

The integrated terminal on the low-voltage HCSL output saves 8 resistors

201 or 301 configurations for SRnS (IR) or CC architecture

The default is 0% SSC

202,302 configurations for SRIS (IR) or CC architectures

The default is -0.5% SSC

SMBus is optional -0.25% SSC

Select a reference clock of 25MHz or 33 1/3 MHZ

REF Clock output; Save the external XO

Operating voltage: 2.5V to 3.3V (VDDREF is 1.8V)

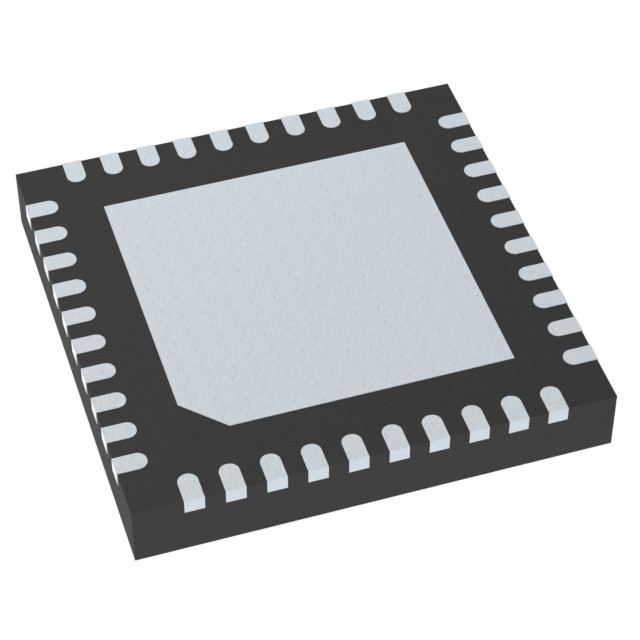

4×4mm 28 VQFP N package with external crystal oscillator

Application scenarios

The 9FGL6241AP201NDGI is specifically designed for single-port and dual-port nVME solid-state drives. It supports both universal (CC) and independent reference (IR) clock architectures, making it highly suitable for U.2 and M.2 forms. The 9FGL6241AP201NDGI can also be used in PCIe master/slave and clock multiplexing applications, with an integrated clock generator serving as the third input channel.
