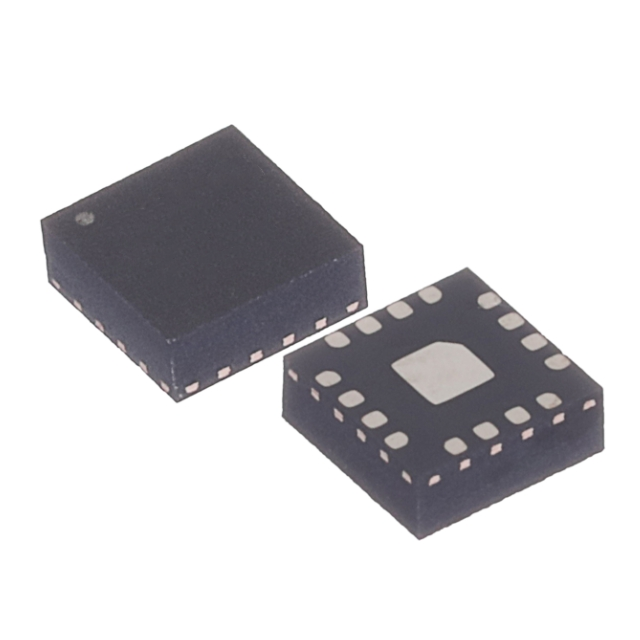

The LMK3H0102A015RERR is a 2-output PCIe 1st to 6th generation compatible no-reference clock generator that supports spread spectrum clock (SSC). This product is based on TI's proprietary bulk acoustic wave (BAW) technology, providing ±25ppm clock output without the need for any crystals or external clock references. LMK3H0102A015RERR can simultaneously provide 2 SSC clocks, 2 non-SSC clocks, or 1 SSC clock and 1 non-SSC clock at the same time.

Its characteristics include

Integrated BAW resonator, no external reference required

• Flexible frequency generation:

- Two-channel crossover: Up to three unique output frequencies, ranging from 2.5MHz to 400MHz

The LVCMOS output supports frequencies up to 200MHz: 1.8V, 2.5V or 3.3V

-Combinations of AC LVDS, DC LVDS, LP-HCSL and LVCMOS on the OUT0 and OUT1 pins

The additional LVCMOS output can generate up to 5 LVCMOS clocks

• Total output frequency stability: ±25ppm

• 2 operation modes: I

2C or pre-programmed OTP

- Fully configurable I2C address

• Ambient temperature: -40 °C to 85°C

• Compliant with PCIe 1st to 6th generation standards: Universal clocks with or without SSC, SRNS and SRIS

• When SSC is present, PCIe jitter is extremely low:

-pcie 3rd generation Universal clock jitter: Up to 135.3fs

(PCIe is limited to 1ps)

-pcie 4th Generation Universal clock jitter: up to 135.3fs

(PCIe is limited to 500fs)

-PCIE 5th generation Universal clock jitter: Up to 57.5fs (PCIe

Limit to 150fs

-pcie 6th Generation Universal Clock jitter: Maximum 34.5fs (PCIe limit is 100fs)

Programmable SSC modulation depth

- Pre-programming: Downward spread spectrum at -0.1%, -0.25%, -0.3% and -0.5%

- Register programmable: -0.1% to -3% downward spread frequency or ±0.05% to ±1.5% center spread frequency

A power supply voltage ranging from 1.8V to 3.3V

• Internal LDO, for LP-HCSL output, it has -93.1 dBc PSNR at 500kHz switching noise

• Startup time: <1.5ms

• Output to output skew: <50ps

Failure protection digital input pin

In addition, ‌ The LMK3H0102A015RERR clock generator is suitable for a variety of applications, including:

PCIe Gen 1 to Gen 6 clock generation

Server motherboard

NIC, SmartNIC

Hardware accelerator

Multifunctional printer

PCIe SSD

Additional cards, PCIe expansion cards
