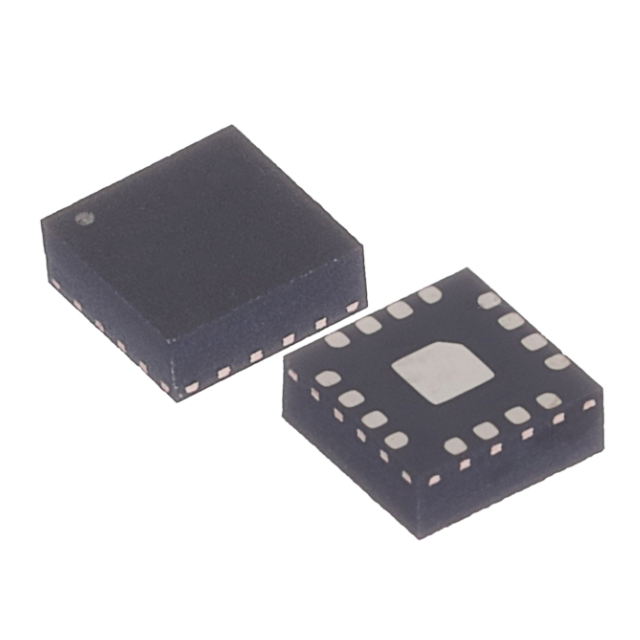

Commodity Model:LMK3H0102A014RERR

Trade Name:Clock Generator

Brand:TI

Particular Year:25+

Package:TQFN-16

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMK3H0102A014RERR
Package
TQFN-16
Describe
PCIe 1st to 7th generation compatible no-reference clock generators based on (BAW)

Product Description

The LMK3H0102A014RERR is a PCIe 1st to 7th generation compatible no-reference clock generator based on bulk acoustic wave (BAW) launched by (TI). This device can simultaneously provide 2 SSC clocks, 2 non-SSC clocks, or simultaneously provide 1 SSC clock and 1 non-SSC clock. The LMK3H0102A014RERR complies with full PCIe compliance from generation 1 to Generation 6, including universal clocks with or without SSC, independent reference without spread spectrum (SRNS), and independent reference with independent spread spectrum (SRIS).


This device has the following main characteristics and technical parameters:

Frequency range and output ‌ : The LMK3H0102A014RERR has a two-channel crossover that can generate up to three distinct output frequencies over a range of 2.5MHz to 400MHz. It also supports LVCMOS output up to 200MHz for 1.8V, 2.5V or 3.3V ‌.

Youdaoplaceholder0 Stability ‌ : The total output frequency stability of this clock generator is ±25ppm, conforming to PCIe Gen 1 to Gen 6 standards, with or without SSC, SRNS and SRIS functions. With SSC, PCIe jitter is extremely low. For example, PCIe Gen 3 jitter is up to 135.3fs (PCIe is limited to 1ps) ‌.

Programmability ‌ : The LMK3H0102A features a programmable SSC modulation depth. The pre-programmed spread ranges include -0.1%, -0.25%, -0.3% and -0.5% downward spread, and the registers programmable spread range is -0.1% to -3% downward spread or ±0.05% to ±1.5% center spread ‌.

Operating environment ‌ : The operating temperature range of this clock generator is -40°C to 85°C, suitable for a variety of industrial and communication applications ‌.


Application scenario ‌

LMK3H0102A014RERR is suitable for a variety of applications including server motherboards, network interface cards (nics), smart nics, hardware accelerators, multifunction printers, PCIe SSDS and plug-in cards, etc. ‌
