The LMK3H0102A006RERR device is a dual-output no-reference clock generator that complies with the PCIe Gen 1 to Gen 6 standards and supports spread spectrum clock (SSC). The LMK3H0102A006RERR is based on TI's proprietary bulk acoustic wave (BAW) technology, providing ±25ppm clock output without the need for any crystals or external clock references. These devices can simultaneously provide two SSC clocks, two non-SSC clocks, or one SSC clock and one non-SSC clock. LMK3H0102A006RERR fully complies with the PCIe standards of Gen 1 to Gen 6.

Technical Specification

Type: Programmable BAW clock generator

Number of Output terminals: 2 Output

Maximum output frequency: 400 MHz

Duty cycle - Maximum: 60%

Jump: 150 ps

Power supply voltage - Maximum: 3.3V

Power supply voltage - minimum: 1.8V

Series: LMK3H0102

Working power supply current: 125.8 mA

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

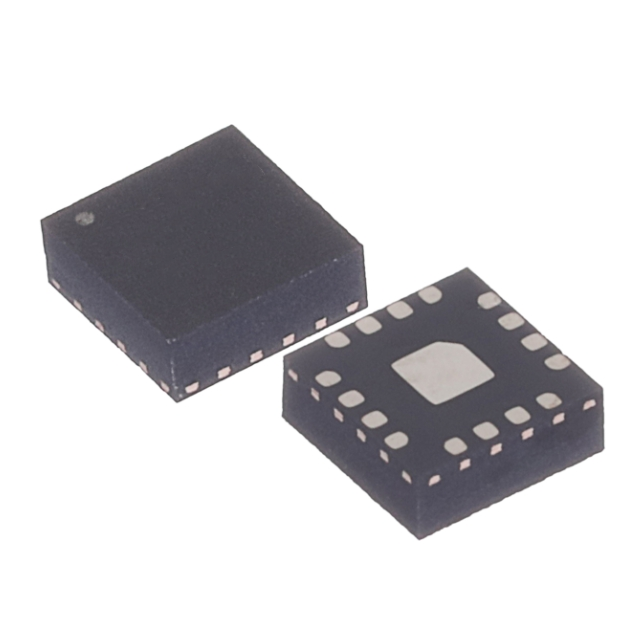

Packaging/Box: TQFN-16

Application field

The LMK3H0102A006RERR clock generator is applicable to the following multiple fields:

PCIe Gen 1 to Gen 6 clock generation

Server motherboard

NIC, SmartNIC

Hardware accelerator

Multifunctional printer

PCIe SSD

Additional cards, PCIe expansion cards
