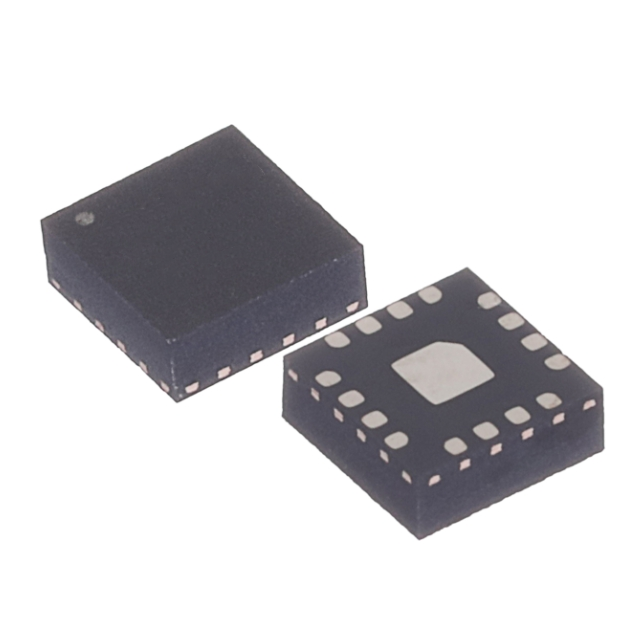

For picture reference, please see the specifications
< >

Commodity Model:LMK3H0102A001RERR

Trade Name:Clock Generator

Brand:TI

Particular Year:25+

Package:TQFN-16

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMK3H0102A001RERR
Package
TQFN-16
Describe
PCIe 1st to 7th generation compatible no-reference clock generators based on (BAW)

Product Description

The LMK3H0102A001RERR is a 2-output PCIe 1st to 6th generation compatible no-reference clock generator that supports spread spectrum clock (SSC). This device is based on TI's proprietary bulk acoustic wave (BAW) technology and can provide a clock output of ±25ppm without any crystal or external clock reference. LMK3H0102A001RERR can simultaneously provide 2 SSC clocks, 2 non-SSC clocks, or 1 SSC clock and 1 non-SSC clock at the same time. The LMK3H0102A001RERR complies with full PCIe compliance from generation 1 to Generation 6, including universal clocks with or without SSC, independent reference without spread spectrum (SRNS), and independent reference with independent spread spectrum (SRIS).


Performance parameters

PLL: None

Main application: PCI Express (PCIe)

Input: -

Output: LP-HCSL, LVCMOS, LVDS

Number of circuits: 1

Ratio - Input: Output: 0:2

Differential - Input: Output: None/Yes

Frequency - Maximum value: 400MHz

Voltage - Power supply: 1.71V - 1.89V, 2.375V - 2.625V, 3.135V - 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package/Shell: 16-TFQFN


The application of LMK3H0102A001RERR

PCIe generation 1 through 6 clock generation

Server motherboard

• NIC, SmartNIC

• Hardware accelerators

• Multi-function printer

• PCIe SSD

• Plug-in cards, PCIe expansion cards
