The LMK3C0105V33RERR is a 5-output no-reference clock generator with SSC support. This device is based on TI's proprietary bulk acoustic wave (BAW) technology and can provide a clock output of ±25ppm without any crystal or external clock reference. The LMK3C0105V33RERR can simultaneously provide 5 SSC clocks, 5 non-SSC clocks, or a combination of SSC and non-SSC clocks. Five outputs can generate up to three different output frequencies. Each output channel can select any FOD as the frequency source to generate four LVCMOS clocks. The REF_CTRL pin is used as the fifth LVCMOS clock output, and any FOD can be selected as the source.

Technical Specification

Type: Clock Generator

PLL: None

Input: -

Output: LVCMOS

Number of circuits: 1

Ratio - Input: Output: 0:5

Differential - Input: Output: None/None

Frequency - Maximum value: 200MHz

Frequency divider/frequency multiplier: None/Yes

Voltage - Power supply: 1.71V - 1.89V, 2.375V - 2.625V, 3.135V - 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

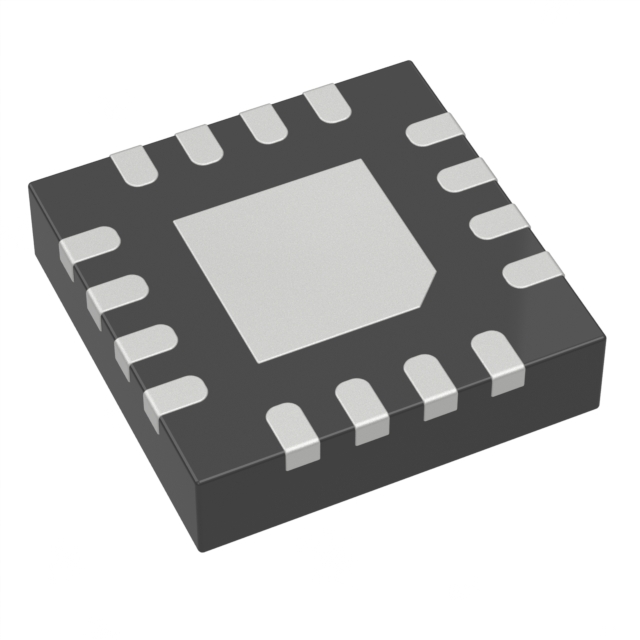

Package/Shell: 16-TFQFN

The application of LMK3C0105V33RERR

Alternative crystals (up to 5 single-ended clocks)

Reference clocks for ASIC, FPGA and MCU

Industrial communication

Industrial PC

Human-machine Interface (HMI)

Wired network
