Service Telephone:86-755-83294757

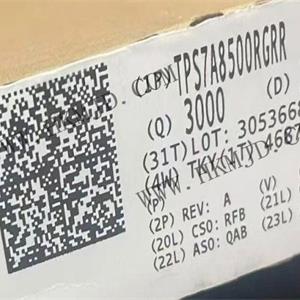

Trade Name:Low Dropout (LDO) Voltage Regulator
Brand:TI
Particular Year:23+
Package:VQFN-20
Delivery Date:New and Original
Stock: 12000pcs
The TPS7A8500RGRR is a low-noise (4.4 µVRMS), low-dropout (LDO) linear regulator with a 4A pull-current capability and a maximum dropout voltage of only 240mV. The output voltage of this device can be programmed via pins within a range of 0.8V to 3.95V and can be adjusted via an external resistor divider within a range of 0.8V to 5.0V.
The TPS7A8500RGRR combines low noise (4.4 µVRMS), high power supply rejection ratio (PSRR), and high output current performance, making it ideal for high-speed communication, video, medical, or test and measurement applications, capable of driving up to 1A load current. The high performance of the TPS7A85 effectively limits phase noise and clock jitter generated by the power supply, making it ideal for powering high-performance serialisers and deserialisers (SerDes), analogue-to-digital converters (ADCs), digital-to-analogue converters (DACs), and radio frequency (RF) components. RF amplifiers particularly benefit from the device's high performance and 5.0V output capability.
Features of the TPS7A8500RGRR
Low dropout voltage: 150mV (typical) at 4A current
Line, load, and temperature accuracy: 1% (maximum)
Output voltage noise:
4.4 µVRMS (output at 0.8V)
8.4 µVRMS (output at 5.0V)
Input voltage range:
No bias: 1.4V to 6.5V
With bias: 1.1V to 6.5V
ANY-OUT operation:
Output voltage range: 0.8V to 3.95V
Adjustable operation:
Output voltage range: 0.8V to 5.0V
Power supply ripple suppression:
40dB at 500kHz
Excellent load transient response
Adjustable soft-start surge current control
Open-drain power good (PG) output
Stable operation when used with a 47µF or larger ceramic output capacitor
Operating temperature range:
–40°C to +125°C
20-pin 3.5mm × 3.5mm ultra-thin quad flat no-lead (VQFN) package
TPS7A8500RGRR Applications
Digital loads: serial-to-parallel converters, field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)
Instrumentation, medical, and audio
High-speed analogue circuits: voltage-controlled oscillators (VCOs), analogue-to-digital converters (ADCs), digital-to-analogue converters (DACs), and low-voltage differential signalling (LVDS)
Imaging: complementary metal-oxide-semiconductor (CMOS) sensors and video application-specific integrated circuits (ASICs)
Test and measurement
