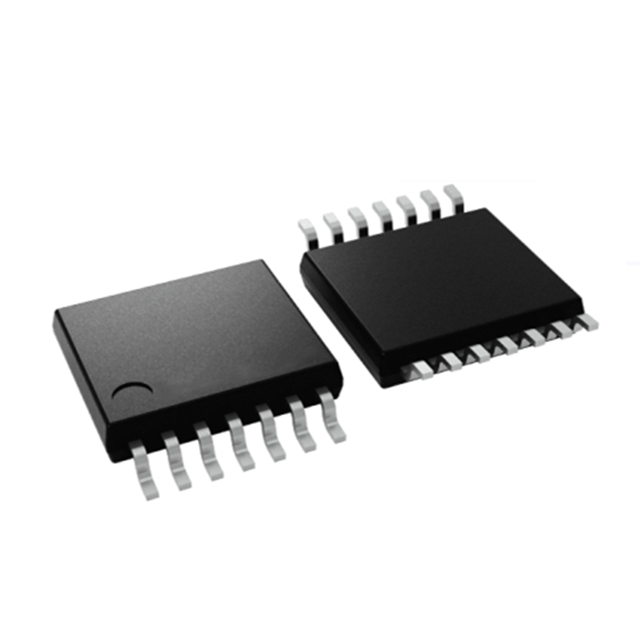

The OPA4392PWR device is a four-channel, low-offset voltage (10μV), low-noise (6nV/rtHz) milliampere bias current e-trim™ operational amplifier.

Its main features include

Low offset voltage: ±10µV (maximum value)

Low-temperature drift: ±0.18µV/°C

Low input bias current: 10fA

Low noise: 4.4nV/√Hz at 10kHz

Low 1/f noise: 2µVPP (0.1Hz to 10Hz)

Low power supply voltage operating range: 1.7V to 5.5V

Low quiescent current: 1.22mA

Fast stability: 0.75µs (1V, 0.1%)

Fast pressure swing rate: 4.5V/µs

High output current: +65mA/ -55mA short circuit

Gain bandwidth: 13MHz

Rail-to-rail input and output

Rated temperature range: -40°C to +125°C

Inputs where EMI and RFI have been filtered out

The OPA4392PWR operational amplifier features ultra-low offset voltage, temperature drift and input bias current, enabling rail-to-rail input and output. In addition to the precise DC accuracy, the AC performance has been optimized to achieve low noise and fast stable transient response. Thanks to these features, the OPA4392PWR is an ideal choice for driving high-precision analog-to-digital converters (ADCs) or buffering the output of high-resolution digital-to-analog converters (Dacs).

The application of OPA4392PWR

Multi-parameter patient monitor

Electrocardiogram (ECG)

Chemical and gas analyzers

Optical module

Analog input module

Process analysis (pH, gas, concentration, force and humidity)

Gas detector

Simulated security camera

Commercial DC/DC

Pulse oximeter

Internal interconnection of data centers (long-distance, underwater)

Data Acquisition (DAQ
