The LTC6088HGN is a four-channel, low-noise, low-offset, rail-to-rail input/output, unity-gain stable CMOS operational amplifier with 1pA input bias current. With a gain-bandwidth product of 14MHz and a slew rate of 7.2V/μs, combined with low noise (10nV/√Hz) and low offset (0.75mV), the LTC6088HGN is suitable for a wide range of applications. The 1.05mA supply current and shutdown mode make it ideal for signal processing applications requiring high performance and extremely low power consumption.

The LTC6088HGN features an output stage with a swing within 30mV of either power rail, designed to maximise signal dynamic range in low-power applications. The input common-mode range covers the full power supply voltage. These operational amplifiers are specified for 3V and 5V power supply voltages over the -40°C to 125°C temperature range.

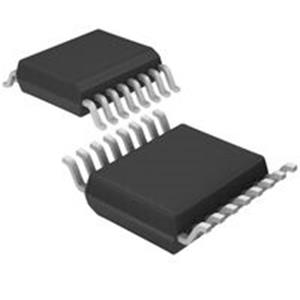

The four-channel amplifier LTC6088HGN is available in a 16-pin SSOP package.

LTC6088HGN Applications

Portable test equipment

Medical equipment

Audio

Data acquisition

High-impedance transducer amplifiers

LTC6088HGN Product Features

Low offset voltage: 750μV (maximum)

Low offset drift: 5μV/°C (maximum)

Input bias current:

1pA (typical at 25°C)

15pA (typical at 85°C)

Rail-to-rail input and output

Gain-bandwidth product: 14MHz

CMRR: 70 dB (minimum)

PSRR: 93 dB (minimum)

Input noise voltage density: 12 nV/√Hz

Supply current: 1.05 mA per amplifier

Shutdown current: 2.3 μA per amplifier

Operating voltage range: 2.7 V to 5.5 V
