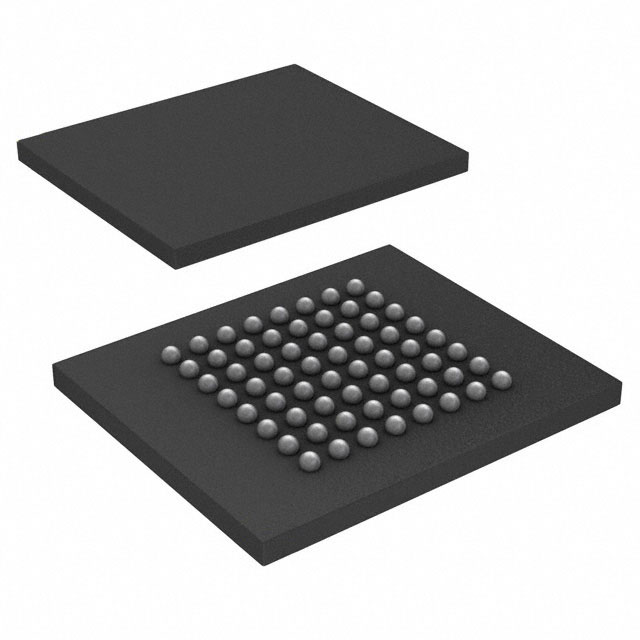

S29GL01GT10FHI010 is a 1Gb (128M × 8-bit) parallel NOR Flash memory device packaged in a 64-FBGA (13×11mm) package. The chip is based on the MirrorBit® Eclipse™ architecture and is suitable for applications requiring high-speed, high-reliability non-volatile storage, such as embedded systems, industrial control, and automotive electronics.

S29GL01GT10FHI010 Specifications

Storage Capacity: 1Gb (128M × 8-bit / 64M × 16-bit)

Interface Type: Parallel

Access Time: 100ns (maximum)

Write Cycle Time: 60ns (word/page)

Supply Voltage: 2.7V to 3.6V

Operating Temperature: -40°C to +85°C

Package: 64-FBGA (13 × 11 mm)

Data Retention Time: 20 years (typical)

Erase/Write Cycles: 100,000 cycles (industrial grade)

Compliance Standards: RoHS, Lead-Free

S29GL01GT10FHI010 Product Features

MirrorBit® Eclipse™ Architecture: Based on 45nm process technology, offering high-density storage and low-power consumption.

High-Speed Read: Supports 100ns random access, suitable for real-time data processing.

Flexible Programming Modes: Supports single-word programming and multi-page programming (up to 512 bytes), enhancing write efficiency.

Sector Protection Mechanism: Advanced Sector Protection (ASP) supports volatile/non-volatile protection modes.

Low Power Design: Single-power supply operation (2.7V to 3.6V), suitable for battery-powered devices.

Industrial-Grade Reliability: Supports wide temperature operation from -40°C to +85°C, suitable for harsh environments.
