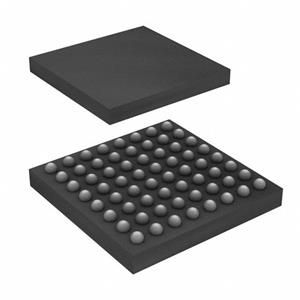

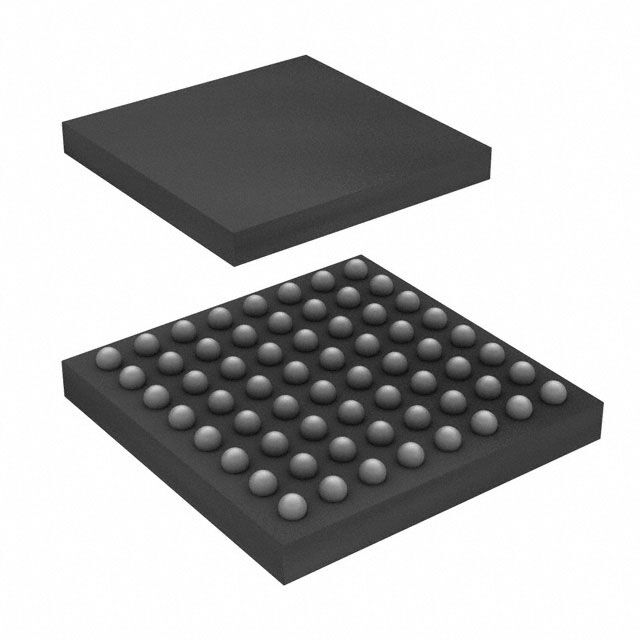

S70GL02GS12FHIV10 is a 2Gb (256M × 8 / 128M × 16) parallel NOR flash memory device packaged in a 64-FBGA (11×13mm) package, designed for high-reliability embedded storage applications. The chip is based on MirrorBit® Eclipse™ technology, offering a 120ns access time and supporting CFI (Common Flash Interface), making it suitable for applications in industrial control, automotive electronics, and communication devices.

S70GL02GS12FHIV10 Core Features

High-performance storage architecture

Storage capacity: 2Gb (128M × 16 / 256M × 8), supporting x8/x16 parallel data buses.

Access time: 120ns (random read), suitable for high-speed data processing.

Low-power design

Operating voltage: 1.65V to 3.6V, compatible with low-power system requirements.

Standby current: as low as 0.2mA (typical value), optimising energy efficiency.

High reliability

Industrial-grade temperature range: -40°C to +85°C (some models support -40°C to +105°C).

Durability: 100,000 erase/write cycles, data retention for 20 years.

Flexible interfaces and features

CFI compatible: supports standard flash memory interfaces, simplifying system integration.

OTP (one-time programmable) region: 2048 bytes, for secure key storage.

S70GL02GS12FHIV10 Specifications

Storage Capacity: 2 Gbit (256 MB)

Memory Organisation: 128M x 16

Interface Type: Parallel Interface

Operating Voltage: 2.7V to 3.6V

Access Time: 120 ns

Operating Temperature: -40°C to +85°C

Package Type: 64-pin FBGA

Mounting Type: Surface Mount
