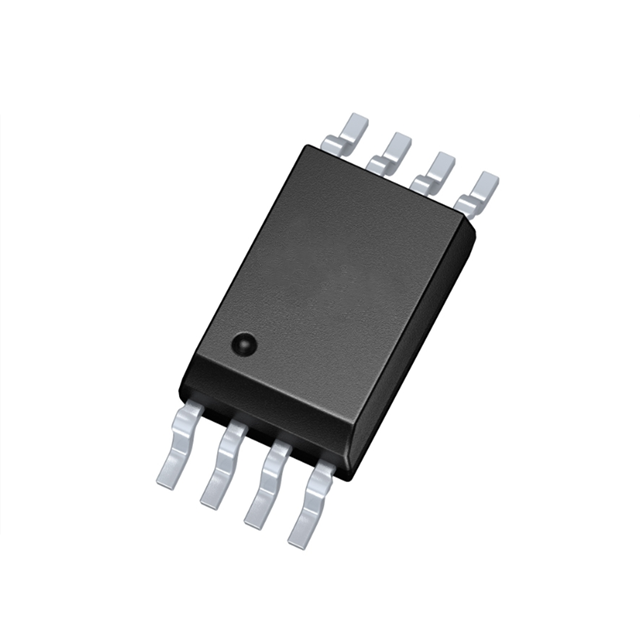

The 1ED3141MC12H EiceDRIVER™ X3 compact IC is a high-performance electrically isolated single-channel gate driver, designed to drive IGBTs, MOSFETs and SiC MOSFETs. The typical output current of 1ED3141MC12H is as high as 6.5A. The input logic pins operate within a wide input voltage range of 3V to 6.5V, using CMOS threshold levels and supporting 3.3V microcontrollers.

Feature description

Supports IGBT, silicon (Si) and silicon carbide (SiC) switches up to 2300 V

Function bias voltage: 2300 V

Coreless transformer technology with electrical isolation

Typical peak output current: up to 6.5A

Propagation delay: 40 ns

Absolute maximum output power supply voltage: 35 V

High common-mode transient immunity (CMTI) : > 300 kV/µs

Supports active shutdown and short-circuit clamping functions

Input power supply voltage: 3.3V and 5V

11/12 V UVLO protection with hysteresis characteristics

It adopts an independent output channel design

Application field

EV charging

Energy storage system

Solar inverter

Server and telecommunication Switching Mode Power Supply (SMPS)

UPS system

Ac and brushless DC motor drive

Commercial Air Conditioning (CAC

High-voltage DC-DC converter and DC-AC inverter
