The LTC6409HUDB is a very high-speed, low-distortion differential amplifier launched by Analog Devices. The input common-mode range of this device includes the ground potential. Therefore, DC coupling, level shifting and conversion can be performed on an input signal referenced to the ground to perform differential driving on an ADC.

The LTC6409HUDB has a stable differential gain of 1. In those applications where gain is not required, this can achieve low output noise. This device absorbs A power supply current of 52mA and has a hardware shutdown function, which can reduce the current consumption to 100μA.

Main characteristics

10GHz gain-bandwidth product

88dB SFDR (at 100MHz, 2VP-P)

1.1nV/√Hz input noise density

The input range includes ground potential

Set the gain using an external resistor (with a minimum value of 1V/V)

Differential conversion rate of 3300V/μs

52mA power supply current

Power supply voltage range: 2.7V to 5.25V

Fully differential input and output

Adjustable output common-mode voltage

Low-power shutdown mode

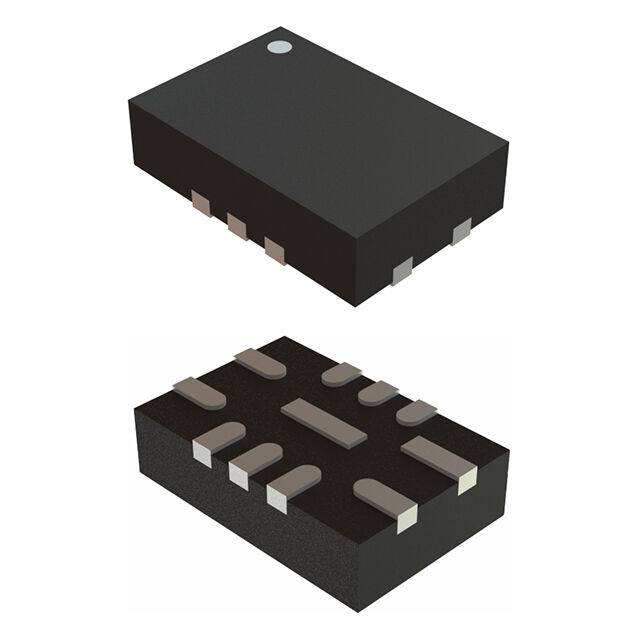

In addition, the LTC6409HUDB is available in a compact 3mm x 2mm 10-pin leadless QFN package, with an operating temperature range of -40 ° C to 125 ° C.

The LTC6409HUDB is suitable for a variety of application fields, including:

Differential pipeline-type ADC driver

High-speed data acquisition card

Automated testing equipment

Time-domain reflectometer

Communication receiver
