The LTC2364CDE-16 is a low-noise, low-power, high-speed 16-bit successive approximation register (SAR) ADC. This product adopts a single 2.5V working power supply and features a pseudo-differential unipolar input range from 0V to VREF and a VREF range from 2.5V to 5.1V. The LTC2364CDE-16 consumes only 3.4mW of power and achieves ±0.75LSB INL (maximum value), no missed codes (at 16 bits), and 94.7dB SNR.

Technical Specification

The key specifications of LTC2364CDE-16 are as follows:

Number of digits: 16

Sampling rate (per second) : 250k

Input number: 1

Input type: Individual pseudo-difference

Data interface: SPI

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference type: External

Voltage - Power supply, simulation: 2.375V to 2.625V

Voltage - Power supply, figures: 2.375V to 2.625V

Feature: -

Operating temperature: 0°C to 70°C

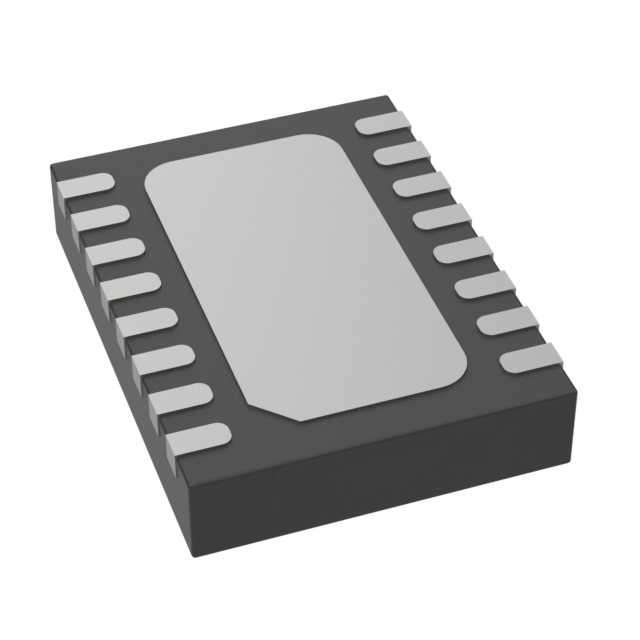

Package/Housing: 16-DFN

Installation type: Surface mount type

Application scenarios

LTC2364CDE-16 is applicable to a variety of application scenarios, including:

Medical imaging

High-speed data acquisition

Portable or compact instruments

Industrial process control

Low-power battery-powered instrument

ATE (Automatic Test Equipment)
