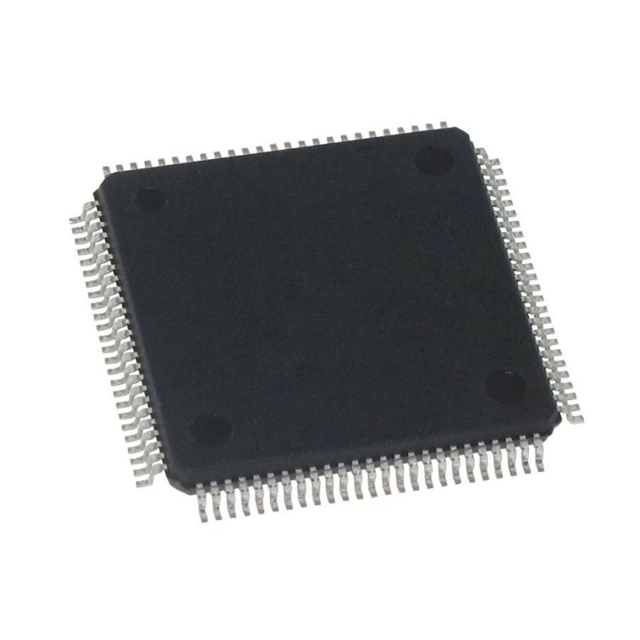

The AD9460BSVZ-80 is a 16-bit single-chip sample-to-digital converter (ADC) with an on-chip sample-hold circuit, optimized for high performance, small size, and ease of use ‌‌. With a sampling rate of up to 80 MSPS, this device has an excellent signal-to-noise ratio (SNR) and is suitable for baseband (<100 MHz) and mid-band instrumentation, medical imaging and radar receiver applications ‌.

The AD9460BSVZ-80 is required to be powered by 3.3V and 5.0V power supplies and a low-voltage differential input clock signal in order to give full play to its working performance. For most applications, no external reference voltage source or driving device is required. The data output is CMOS compatible or LVDS compatible (ANSI-644 compatible), and includes methods that can reduce the total current required for short traces.

Technical parameters

Model: AD9460BSVZ-80

Resolution: 16 bits

Number of channels: 1 Channel

Interface type: Parallel

Sampling ratio: 80 MS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 3.3V, 5V

Digital power supply voltage: 3.3V

SNR - Signal-to-Noise Ratio: 78.4 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Package/Box: TQFP-100

DNL - Differential nonlinearity: +/- 0.9 LSB

Gain error: +/- 3.4% FSR

Height: 1 mm

Inl-integral nonlinearity: +/- 6 LSB

Input voltage: 2 Vp-p/4 Vp-p

Length: 14 mm

Humidity sensitivity: Yes

Number of ADC Input terminals: 1 Input

Number of converters: 1 Converter

Working power supply voltage: 3.3V, 5V

Output type: CMOS/LVDS

Pd- Power dissipation: 2.2W

Power consumption: 1.8W

Product type: ADCs-Analog to Digital Converters

Reference types: External, Internal

Sampling and holding: Yes

Power supply voltage - Maximum: 3.3V, 5V

Power supply voltage - minimum: 3.3V, 5V

Type: S/H ADC

Width: 14 mm

Unit weight: 657 mg
