AD9446BSVZ-80 is a 16-bit single-chip analog-to-digital converter (ADC) optimized for high performance, small size, and ease of use ‌. With sampling rates up to 80 MSPS and excellent signal-to-noise ratio (SNR), this ADC is suitable for baseband intermediate frequency (<100 MHz) instrumentation, medical imaging and radar receiver applications ‌.

Key Features

The main features of AD9446BSVZ-80 include:

Ensure a sampling rate of 80 MSPS

Signal-to-noise ratio (SNR) : 83.6 dBFS

(Input frequency: 30 MHz, 3.8 V p-p input, 80 MSPS)

Signal-to-noise ratio (SNR) : 82.6 dBFS

(Input frequency: 30 MHz, 3.2 V p-p input, 80 MSPS)

Parasitic dynamic range (SFDR) : 89 dBc

(Input frequency: 30 MHz, 3.2 V p-p input, 80 MSPS)

Dual-frequency SFDR: 95 dBFS

(9.8 MHz and 10.8 MHz, 100 MSPS)

Root mean square jitter: 60 fsec

Excellent linearity

Differential nonlinearity (DNL) = ±0.4 LSB (typical value)

Integral nonlinearity (INL) = ±3.0 LSB (typical value)

Differential full-scale input from 2.0V p-p to 4.0V p-p

Analog input buffering

LVDS output (ANSI-644 compatible) or CMOS output

Data format selection (offset binary or binary complement)

Provide the output clock

Powered by 3.3V and 5V power supplies

Application scenarios

The AD9446BSVZ-80 is applicable to a variety of high-precision application scenarios, including:

MRI receiver

Multi-carrier and multi-mode mobile phone receiver

Antenna array positioning

Power amplifier linearization

Broadband wireless

Radar, infrared imaging

Communication instrument

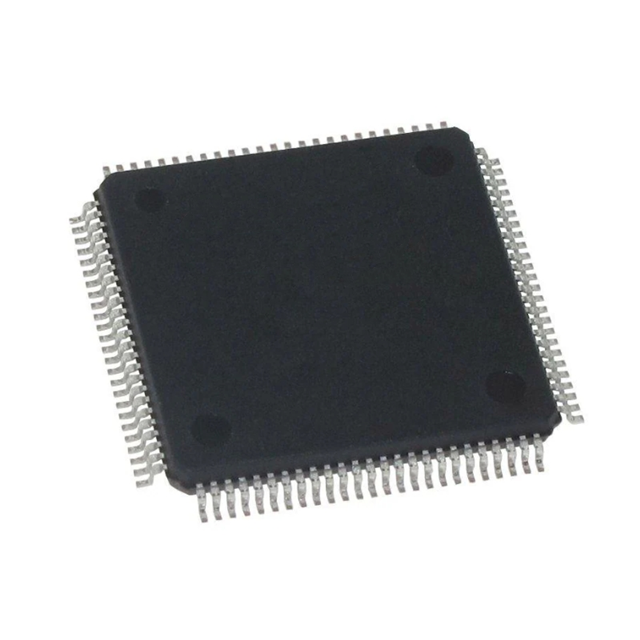

In addition, the AD9446BSVZ-80 adopts a 100-pin surface mount plastic package (100-pin TQFP/EP), and its rated temperature range is from -40 ℃ to +85℃.
