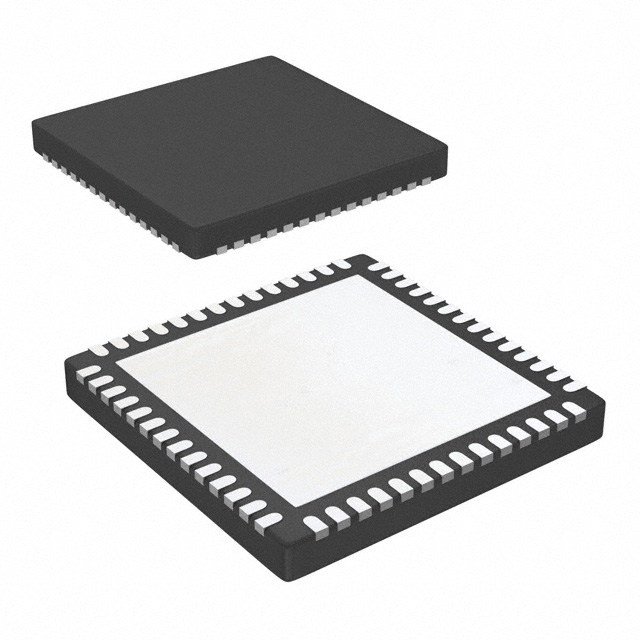

The AD9434BCPZ-370 is a 12-bit, 370 MSPS, 1.8V analog-to-digital converter (ADC) optimized for high performance, low power consumption, and ease of use ‌. This product features outstanding dynamic performance and is suitable for use in broadband carriers and broadband systems. The AD9434BCPZ-370 integrates all the necessary features, including a sampler hold and reference voltage source, to provide a complete signal conversion solution ‌.

Technical Specification

The main specifications of AD9434BCPZ-370 include:

Digit number: 12

Sampling rate (per second) : 370M

Input number: 1

Input type: Differential

Data interface: LVDS - Parallel

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: Pipeline

Reference types: External, Internal

Voltage - Power supply, simulation: 1.75V to 1.9V

Voltage - Power supply, digital: 1.75V to 1.9V

Feature: -

Operating temperature: -40°C to 85°C

Package/Shell: 56-LFCSP

Installation type: Surface mount type

Application field

The AD9434BCPZ-370 is widely applied in the following fields:

Wireless and wired broadband communication

Cable reverse path

Communication test equipment

Radar and satellite subsystems

Power amplifier linearization
