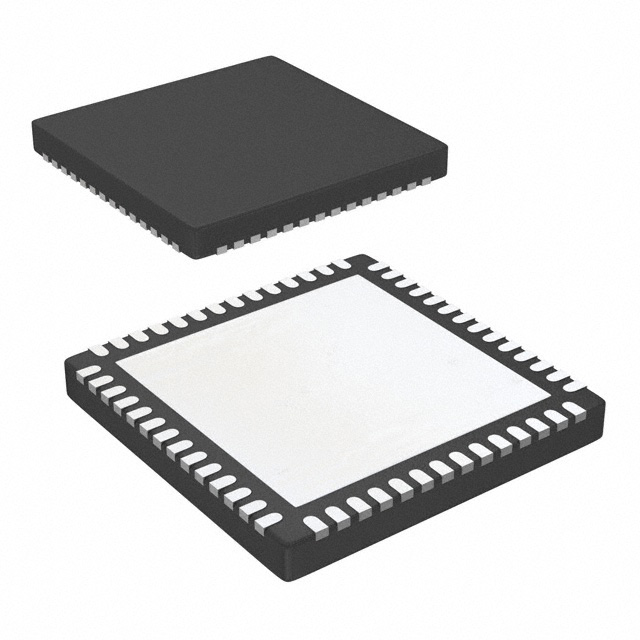

AD9434BCPZ-500 is a 12-bit single-chip sampling analog-to-digital converter (ADC) optimized for high performance, low power consumption, and ease of use ‌. The conversion rate of this device can reach up to 500 MSPS at most. It has excellent dynamic performance and is suitable for broadband carriers and broadband systems. The AD9434BCPZ-500 integrates all the necessary features, including a sampler hold and reference voltage source, to provide a complete signal conversion solution ‌.

The main features of AD9434BCPZ-500 include:

High performance: The signal-to-noise ratio remains at 65 dBFS when the input is 500 MSPS and 250 MHz.

2. Low power consumption: Power consumption is only 660 mW at 500 MSPS.

3. Easy to use: The LVDS output data and output clock signal allow interface with the current FPGA. The on-chip reference voltage source and sampling hold function make the system design more flexible, and the adoption of a 1.8V single power supply simplifies the system power supply design.

4. Serial port control: The standard serial port interface supports various product functions, such as data formatting, power-saving mode, gain adjustment, and generating output test codes, etc.

5. The AD9434BCPZ-500 is pin-compatible with the AD9230 and can replace many existing ADCs in various applications with only a few design changes.

Application scenarios

Wireless and wired broadband communication

Cable reverse path

Communication test equipment

Radar and satellite subsystems

Power amplifier linearization
