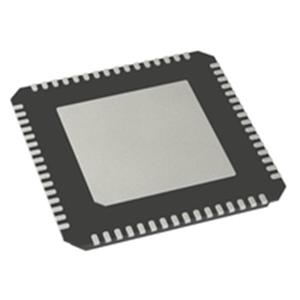

The AD9643BCPZ-250 device is a 14-bit, 250 MSPS, 1.8V dual-channel analog-to-digital converter (ADC) produced by Analog Devices (ADI), designed to provide solutions for low-cost, small-sized, wide-bandwidth, and multi-functional communication applications. The AD9643BCPZ-250 has the following main features:

Signal-to-noise ratio (SNR) : 70.6 dBFS (185 MHz AIN, 250 MSPS)

Spurious dynamic range (SFDR) : 85 dBc (185 MHz AIN, 250 MSPS)

Input noise: -151.6 dBFS/Hz (185 MHz, -1 dBFS AIN, 250 MSPS)

Total power consumption: 785 mW (250 MSPS)

1.8V power supply voltage

LVDS (ANSI-644 level) output

1 to 8 integer input clock divider (maximum input frequency 625 MHz

The sampling rate is as high as 250 MSPS

The intermediate frequency sampling frequency is as high as 400 MHz

Internal reference voltage source of ADC

Flexible analog input range

1.4V p-p to 2.0V p-p (nominal value 1.75V p-p)

ADC clock duty cycle stabilizer

95 dB channel isolation/crosstalk

Serial port control

Energy-saving shutdown mode

Furthermore, the AD9643BCPZ-250 is suitable for a variety of application scenarios, mainly including:

- Communication

Diversity radio system

Multimode digital receiver (3G)

TD-SCDMA, WiMax, WCDMA

CDMA2000, GSM, EDGE, LTE

- I/Q demodulation system

Intelligent antenna system

General-purpose software-defined radio

Ultrasonic equipment

Broadband data application
