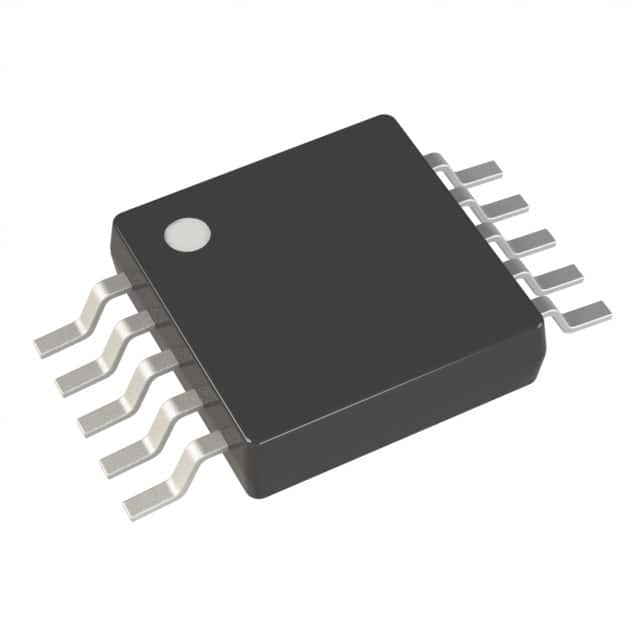

The LTC3388IMSE-3 is a 20V, high efficiency, milli-power step-down regulator from ADI, suitable for a variety of battery-powered and low static power applications, including continuous operation, energy harvesting and industrial control power ‌. Its features and main specifications include:

Function: Lower blood pressure

Output configuration: Positive

Topology: Voltage reduction

Output type: Programmable

Output number: 1

Voltage - Input (minimum) : 2.7V

Voltage - Input (maximum value) : 20V

Voltage - Output (minimum/Fixed) : 2.8V, 3V, 3.3V, 5V

Voltage - Output (maximum value) : -

Current - Output: 50mA

Frequency - Switch: -

Synchronous rectifier: Yes

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Shell: 10-MSOP

Main features

The LTC3388IMSE-3 has the following characteristics:

In the regulated state, input IQ as 720nA (unloaded, VIN = 4V)

In the regulated state, input IQ as 820nA (no-load, VIN = 20V)

Input an IQ of 400nA in the UVLO state

Input working voltage range: 2.7V to 20V

The output current is as high as 50mA

Output voltages that can be selected through pins: 2.8V, 3.0V, 3.3V, 5.0V

High-efficiency hysteresis synchronous DC/DC conversion

The standby mode can prohibit the operation of the voltage reduction switch

Application scenarios

The LTC3388IMSE-3 is suitable for a variety of low-power applications, including:

Live power supply for portable products

Industrial control power supply

Distributed power generation system

Battery-powered equipment
