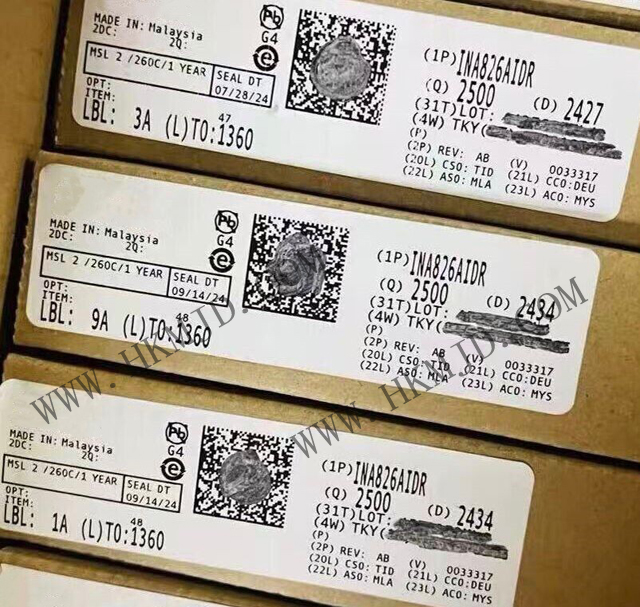

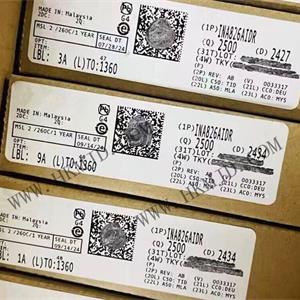

Trade Name:Instrumentation Amplifiers
Brand:TI
Particular Year:24+
Package:SOIC-8
Delivery Date:New and Original
Stock: 20000pcs
The INA826AIDR is a cost-effective instrumentation amplifier with extremely low power consumption that operates over a wide single- or dual-supply range. A single external resistor sets any gain from 1 to 1000. With a low gain drift of 35 ppm/°C (max), the device has excellent temperature stability, even with G > 1.
Optimised for a common-mode rejection ratio of more than 100 dB (G = 10) up to 5 kHz, the INA826AIDR has a common-mode rejection ratio of more than 84 dB over the entire input common-mode range from negative supply all the way up to the 1 V positive supply with G = 1. With rail-to-rail outputs, the INA826AIDR is ideal for low-voltage operation with a single supply of 3 V, as well as dual-supply operation of up to ±18 V. The device is also suitable for use in a wide range of applications. Applications
INA826AIDR Product Attributes
Product Category: Instrumentation Amplifiers
Series: INA826
Number of Channels: 1 Channel
3dB Bandwidth: 1 MHz
SR - Conversion rate: 1 V/us
CMRR - Common Mode Rejection Ratio: 120 dB
Ib - Input bias current: 65 nA
Vos - Input bias voltage: 150 uV
Supply voltage - max: 36 V
Supply voltage - min: 2.7 V
Operating supply current: 200 uA
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Bandwidth: 1 MHz
Dual supply voltage: 2.7 V to 36 V
en - Input voltage noise density: 18 nV/sqrt Hz
Gain Error: 0.0005 %
Gain V/V: 1 V/V to 1000 V/V
Ios - Input bias current : 10 nA
Humidity sensitivity: Yes
Operating supply voltage: 2.7 V to 36 V
Output current per channel: 16 mA
Output Type: Rail-to-Rail
PSRR - Power Supply Rejection Ratio: 100 dB
Vcm - Common Mode Voltage: +/- 40 V
Applications of INA826AIDR
- Analogue input modules
- Flow transmitters
- Battery testing
- LCD testing
- Electrocardiogram (ECG)
- Surgical equipment
- Process Analysis (pH, Gas, Concentration, Force, Humidity)
- Circuit breakers (ACB, MCCB, VCB)
