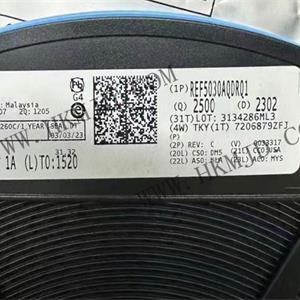

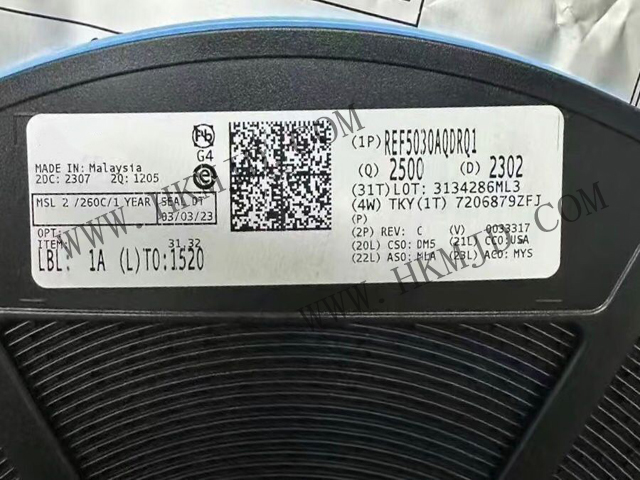

For picture reference, please see the specifications
< >

Commodity Model:REF5030AQDRQ1

Trade Name:Voltage Reference

Brand:TI

Particular Year:23+

Package:SOIC-8

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
REF5030AQDRQ1
Package
SOIC-8
Describe
Automotive low noise, extremely low temperature drift, precision 3V series voltage reference

Product Description

REF5030AQDRQ1 is an automotive-grade (AEC-Q100 certified), low-noise, ultra-low temperature drift, high-precision 3V series voltage reference chip, in an 8-SOIC package, suitable for precision voltage reference applications in harsh environments.


REF5030AQDRQ1 Core Features

High precision voltage output

Fixed 3V output, initial accuracy ± 0. 1%, ensures a stable and reliable reference voltage.

Ultra-low temperature drift coefficient: 8ppm/°C (standard grade), suitable for wide temperature environment.

Low noise performance

The noise in the frequency band of 0.1 Hz ~ 10Hz is only 9 µ V < sub > p-p </sub >, which is suitable for high-precision data acquisition system.

Wide input voltage range (3.2 V ~ 18V)

It adapts to a variety of power environments, and supports ± 10 mA output/draw current, with strong driving ability.

Automotive-grade reliability (AEC-Q100 certified)

The operating temperature range is-40 °C ~ 125 °C, which meets the stringent standards of automotive electronics.

Low quiescent current (1.2 mA)

Optimized power consumption for battery-powered or low-power applications.


REF5030AQDRQ1 technical parameters

Product category: Reference voltage

Installation style: SMD/SMT

Package/Case: SOIC-8

Reference Type : Series Precision References

Output voltage: 3 V

Initial accuracy: 0.05%

Temperature coefficient: 8 PPM/C

Series VREF-Input Voltage-Max: 18 V

Shunt current-max: 10 mA

Minimum operating temperature:-40 C

Maximum operating temperature: + 125 C


REF5030AQDRQ1 Typical Application

Automotive electronics (ECU, ADAS sensor power supply)

Industrial control system (PLC, high-precision ADC/DAC reference)

Medical equipment (precision measuring instruments)

Communication equipment (base station, optical module)

Associated Products

Model

Brand

Package

Quantity

Describe

ADR391BUJZ

ADI

TSOT-5

3000

2.5 V micro-power, low-noise, precision reference voltage source with built-in shutdown function

ADR3650BRMZ

ADI

MSOP-8

2000

Precision Micropower High Current Output Voltage Reference

REF5050IDR

TI

SOIC-8

15000

Low Noise, Very Low Drift, Wide VIN Precision Voltage References

DS4303R

ADI

SOT23-5

2000

Voltage Reference IC 3.3 V ±0.03% SOT-23-5

LM4040D20IDBZR

TI

SOT-23-3

20000

Fixed and Voltage, 45µA, Precision Micropower Shunt Voltage References

REF3012AIDBZR

TI

SOT-23-3

1000

50ppm/°C temperature drift, 50µA Iq with SOT-23-3 series voltage reference

REF195GRUZ

ADI

TSSOP-8

3000

5.0V Precision, Micropower, Low Dropout, Low Voltage Reference Voltage Source

REF3425IDBVR

TI

SOT-23-6

50000

2.5V Low Drift, Low Power, Small Series Voltage Reference

ADR4533BRZ

ADI

SOIC-8

2000

Ultra-Low-Noise High-Accuracy 3.3V Voltage Reference

ADR4525BRZ

ADI

SOIC-8

15000

Ultra Low Noise, High Accuracy 2.5V Reference Voltage Source

FAQ

  • 1.Is the inventory and price seen on the platform accurate?

    A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

  • 2.Are all our products genuine?

    A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

  • 3.Can you provide the qualification certificate of the original factory or agent?

    A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

  • 4.Can I make an inquiry through the company's website?

    A: You can inquire through the website, or by phone and email.

  • 5.When can I deliver the goods after placing an order? How long will it take to get there?

    A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

  • 6.Can the company issue an invoice?

    A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
