Texas Instruments TM4C1230H6PMI7 Tiva™ C-Series MCUs offer you a rich family of connected Cortex™-M4F microprocessors. Designers moving to the Tiva C-Series MCUs benefit from balancing the floating-point performance needed to create highly responsive mixed-signal applications with the low-power architectures needed to achieve increasingly challenging power allocations.

Product Attributes

Family: Tiva™ C

Core Processor: ARM® Cortex®-M4F

Core specification: 32-bit single core

Speed: 80MHz

Connectivity: CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, POR, WDT

Number of I/O: 49

Program memory capacity: 256KB (256K x 8)

Programme memory type: Flash

EEPROM Size: 2K x 8

RAM Size : 32K x 8

Voltage - Supply (Vcc/Vdd) : 1.08V ~ 3.63V

Data Converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

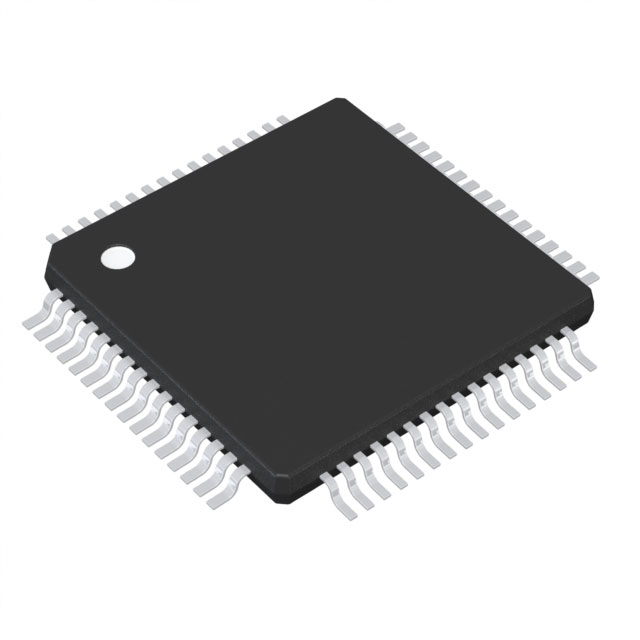

Package/Case: 64-LQFP

Supplier Device Package: 64-LQFP (10x10)

Texas Instruments' Tiva™ C family of ARM Cortex-M4 microcontrollers delivers top performance and advanced integration features. This product family is ideal for applications that need to control costs while requiring significant control and connectivity capabilities, such as:

■ Low-power handheld smart devices

■ Gaming devices

■ Home and commercial surveillance

■ Motion control

■ Medical devices

■ Test and measurement instruments

■ Factory automation

■ Fire and security appliances

■ Smart Energy/Smart Grid Solutions

■ Smart Lighting Controls

■ Transport
