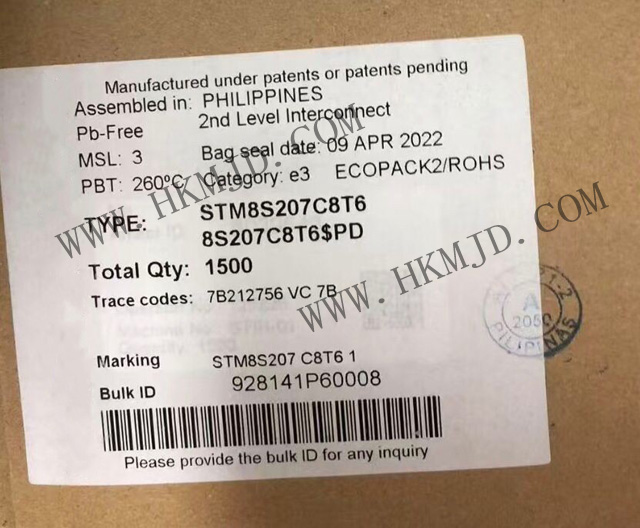

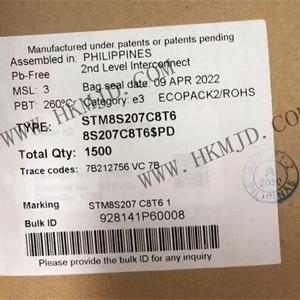

For picture reference, please see the specifications
< >

Commodity Model:STM8S207C8T6

Trade Name:8-bit Microcontroller - MCU

Brand:ST

Particular Year:22+

Package:LQFP-48

Delivery Date:New and Original

Stock: 12400pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STM8S207C8T6
Package
LQFP-48
Describe
8-Bit Microcontroller - MCU 24MHz, 8-Bit MCU 20MIPS@24MHz

Product Description

The STM8S207C8T6 is a high-performance 8-bit microcontroller (MCU) belonging to the STM8S series, packaged in an LQFP-48 package, and suitable for embedded applications such as industrial control, consumer electronics, and automotive electronics.


STM8S207C8T6 Core Features

High-performance 8-bit RISC architecture:

24 MHz clock frequency, with execution speeds up to 20 MIPS (million instructions per second).

Three-stage pipeline for improved instruction execution efficiency.

Extended instruction set supporting complex operations.

Large storage resources:

64KB Flash program memory (supporting 100,000 erase/write cycles, with data retention for 20 years).

6KB RAM for runtime data caching.

1.5KB EEPROM (supporting 300,000 erase/write cycles) for storing critical configuration data.

Rich peripheral interfaces:

10-bit ADC (16 channels), supporting multi-channel analogue signal acquisition.

2×UART (supporting LIN 2.1), for serial communication.

SPI (10 Mbps), I²C (400 kbps), supporting high-speed peripheral connections.

1×CAN 2.0B controller, suitable for automotive and industrial communications.

4×16-bit PWM, supporting motor control, LED dimming, and other applications.

Low-power design:

Operating voltage range: 2.95V to 5.5V, suitable for various power supply environments.

Multiple low-power modes (standby, active stop, stop mode), suitable for battery-powered devices.

High-reliability design:

Independent watchdog (IWDG) to prevent system lockups.

Clock security system (CSS) to detect clock faults and automatically switch to a backup clock.

Current injection protection design to enhance EMC performance.


STM8S207C8T6 Key Parameters

Core: STM8 (8-bit RISC)

Clock speed: 24 MHz (20 MIPS)

Flash: 64 KB

RAM: 6 KB

EEPROM: 1.5KB

ADC: 10-bit, 16 channels

Communication interfaces: 2×UART, 1×SPI, 1×I²C, 1×CAN

PWM: 4×16-bit

Operating voltage: 2.95V to 5.5V

Operating temperature: -40°C to +85°C

Package: LQFP-48 (7×7mm)
