The MSP430G2231IPW4RQ1 microcontroller (MCU) family includes several devices with different peripherals for a wide range of applications.The MSP430G2231IPW4RQ1 features a high-performance 16-bit RISC CPU, 16-bit registers, and a constant generator for excellent code efficiency. The digitally controlled oscillator wakes up from low-power mode and enters active mode in 6µs.

Product Attributes

Core processor: MSP430 CPU16

Core specification: 16-bit

Speed: 16MHz

Connectivity: I²C, SPI

Peripherals: undervoltage detection/reset, POR, PWM, WDT

Number of I/O: 10

Programme memory capacity: 2KB (2K x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 128 x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 8x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

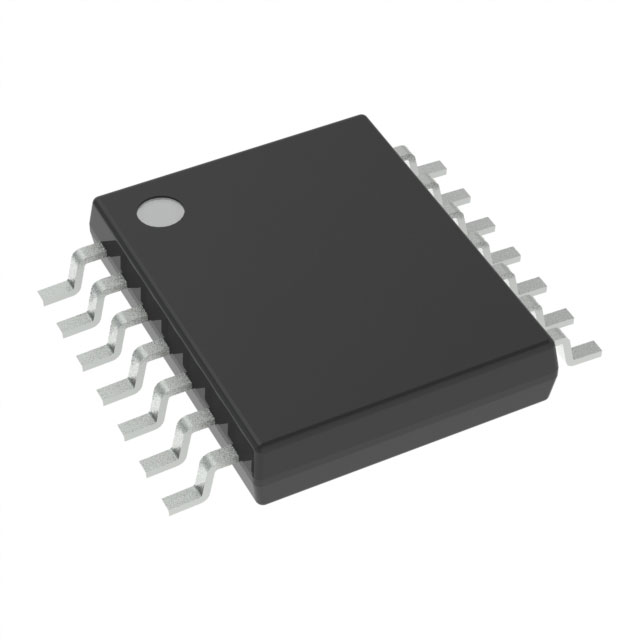

Package/Case: 14-TSSOP (0.173", 4.40mm wide)

Supplier Device Package: 14-TSSOP
