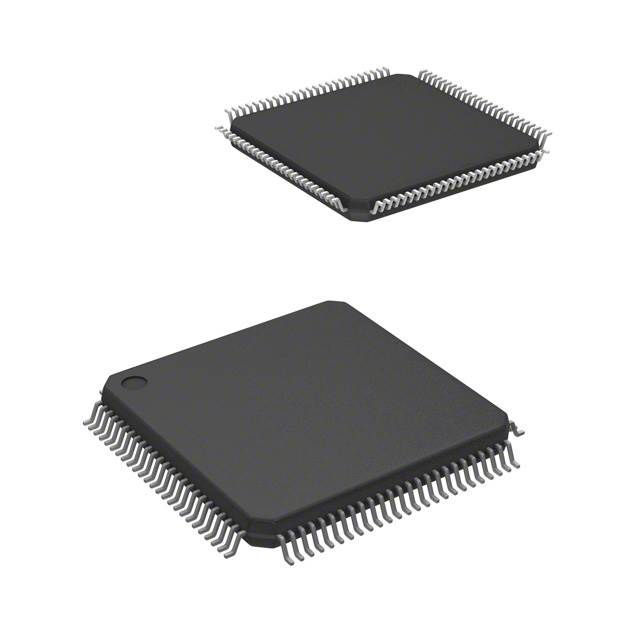

The TMS320F2809PZS devices are part of the TMS320C28x DSP family of devices and are highly integrated and high-performance solutions for demanding control applications.

Features

- High-performance static CMOS technology

- 100MHz (10ns cycle time)

- 60MHz (16.67ns cycle time)

- Low power (1.8V core, 3.3V I/O) design

- JTAG boundary-scan support

- IEEE Std 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture

- High-performance 32-bit CPU (TMS320C28x)

- 16 × 16 and 32 × 32 MAC operation

- 16 × 16 dual MAC

- Harvard Bus Architecture

- Annealing operations

- Fast interrupt response and handling

- Unified Memory Programming Model

- Efficient code (in C/C++ and assembly language)

- On-chip memory

- F2809: 128K × 16 Flash, 18K × 16 SARAM

- 1K × 16 OTP ROM (Flash devices only)

- C2802: 32K × 16 ROM, 6K × 16 SARAM

C2801: 16K × 16 ROM, 6K × 16 SARAM

- Boot ROM (4K × 16)

- With software boot mode (via SCI, SPI, CAN, I2C, and parallel I/O)

- Standard maths tables

- Clock and system control

- On-chip oscillator

- Watchdog timer module

- Any GPIO A pin can be connected to one of three external kernel interrupts

- Peripheral Interrupt Expansion (PIE) block supporting all 43 peripheral interrupts

- Byte order: little end byte order

- 128-bit security key/lock

- Protects Flash/OTP/L0/L1 blocks

- Firmware reverse engineering protection

- 3 32-bit CPU timers

- Enhanced control peripherals

- Up to 16 PWM outputs

- Up to 6 HRPWM outputs at 150ps MEP resolution

- Up to 4 capture inputs

- Up to 2 quadrature encoder interfaces

- Up to 6 32-bit/6 16-bit timers

- Serial Port Peripherals

- Up to 4 SPI modules

- Up to 2 SCI (UART) modules

- Up to 2 CAN modules

- 1 Internal Integrated Circuit (I2C) Bus

- 12-bit ADC, 16-channel

- 2 × 8-channel input multiplexer

- Two sample hold

- Single/synchronous conversion

- Fast conversion rates:

80ns - 12.5MSPS (F2809 only)

- Internal or external reference

- Up to 35 individually programmable multiplexed GPIO pins with input filters

- Advanced Simulation Features

- Analysis and breakpoint functions

- Real-time debugging via hardware

- Development support includes

- ANSI C/C++ compiler/assembler/connector

- Source code for Code Composer Studio™IDE project examples

- SYS/BIOS

- Digital motor control and digital power software libraries

- Low-power modes to save energy

- Supports idle, standby, and shutdown modes

- Supports idle, standby, and shutdown modes Disables separate peripheral clocks

- Package Options

- Low-profile quad flat packages (PZ)

- MicroStar BGA™ (GGM, ZGM)

- Temperature Options

- A: -40°C to 85°C (PZ, GGM, ZGM)

- S: -40°C to 125°C (PZ, GGM, ZGM)

- Q: -40°C to 125°C (PZ)

(AEC-Q100 certified for automotive applications)
