C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing.

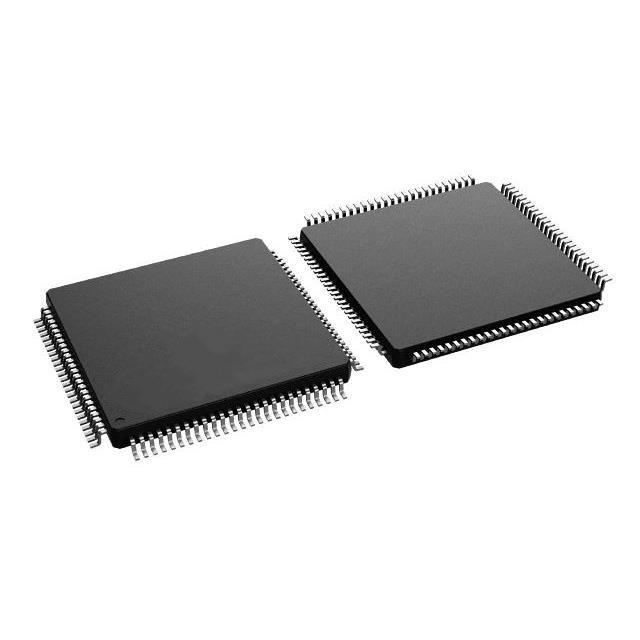

F280045PZSR is a powerful 32-bit floating-point microcontroller unit (MCU) that lets designers incorporate crucial control peripherals, differentiated analog, and nonvolatile memory on a single device.

Feature Of F280045PZSR

TMS320C28x 32-bit CPU

100 MHz

IEEE 754 single-precision Floating-Point Unit (FPU)

Trigonometric Math Unit (TMU)

3×-cycle to 4×-cycle improvement for common trigonometric functions versus software libraries

13-cycle Park transform

Viterbi/Complex Math Unit (VCU-I)

Ten hardware breakpoints (with ERAD)

Programmable Control Law Accelerator (CLA)

100 MHz

IEEE 754 single-precision floating-point instructions

Executes code independently of main CPU

On-chip memory

256KB (128KW) of flash (ECC-protected) across two independent banks

100KB (50KW) of RAM (ECC-protected or parity-protected)

Dual-zone security supporting third-party development

Unique Identification (UID) number

Clock and system control

Two internal zero-pin 10-MHz oscillators

On-chip crystal oscillator and external clock input

Windowed watchdog timer module

Missing clock detection circuitry

1.2-V core, 3.3-V I/O design

Internal VREG or DC-DC for 1.2-V generation allows for single-supply designs

Brownout reset (BOR) circuit

System peripherals

6-channel Direct Memory Access (DMA) controller

40 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins

21 digital inputs on analog pins

Enhanced Peripheral Interrupt Expansion (ePIE) module

Multiple low-power mode (LPM) support with external wakeup

Embedded Real-time Analysis and Diagnostic (ERAD)

Communications peripherals

One Power-Management Bus (PMBus) interface

One Inter-integrated Circuit (I2C) interface (pin-bootable)

Two Controller Area Network (CAN) bus ports (pin-bootable)

Two Serial Peripheral Interface (SPI) ports (pin-bootable)

Two UART-Compatible Serial Communication Interfaces (SCIs) (pin-bootable)

One UART-Compatible Local Interconnect Network (LIN)

One Fast Serial Interface (FSI) with a transmitter and receiver

Applications Of F280045PZSR

Medium/short range radar

Air conditioner outdoor unit

Door operator drive control

Automated sorting equipment

CNC control

Textile machine

Welding machine

AC charging (pile) station

DC charging (pile) station

EV charging station power module

Wireless vehicle charging module

Energy storage power conversion system (PCS)

Central inverter

Solar power optimizer

String inverter

DC/DC converter

Inverter & motor control

On-board (OBC) & wireless charger

AC drive control module

AC drive power stage module

Linear motor power stage

Servo drive control module

AC-input BLDC motor drive

DC-input BLDC motor drive

Industrial AC-DC

Three phase UPS

Merchant network & server PSU

Merchant telecom rectifiers
