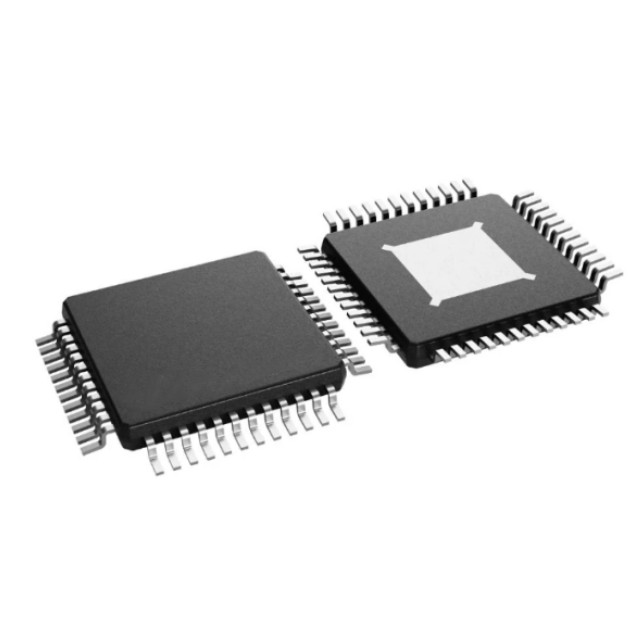

F2800156EPHPQ1: C2000 Real-time Microcontroller - Automotive Grade C2000™ 32-bit MCU, HTQFP-48

Model: F2800156EPHPQ1

Package: HTQFP-48

Type: C2000 Real-time Microcontroller

F2800156EPHPQ1 Specifications:

Series: C2000™ C28x

Core Processor: TMS320C28x

Core Specification: 32-bit Dual Core

Speed: 100MHz

Number of I/Os: 27

Program Memory Capacity: 256KB (128K x 16)

Program Memory Type: Flash

RAM Size: 18K x 16

Voltage - supply (Vcc/Vdd ): 2.8V ~ 3.63V

Data Converter: A/D 18x12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 150°C (TA)

Mounting Type: Surface Mount

Vendor Device Package: 48-HTQFP (7x7)

Package/Case: 48-PowerTQFP

F2800156EPHPQ1 Product Features:

120MHz 32-bit lock-step dual TMS320C28x core

On-chip memory

256KB (128KW) single bank Flash (ECC protected)

36KB (18KW) RAM (ECC/parity protected)

Clock and system control

2 internal 10MHz oscillators

Crystal oscillators or external clock inputs

Windowed Watchdog Timer Module

Lost Clock Detection Circuitry

Dual Clock Comparator (DCC)

1.2V core, 3.3V I/O design

Internal VREG generates 1.2V

Undervoltage Reset (BOR) Circuitry

Enhanced Control Peripherals

Fourteen ePWM channels, four of which are high-resolution (150ps resolution)

Three Enhanced Capture (eCAP) modules

Two CW/CCW operation modes supporting Two Enhanced Quadrature Encoder Pulse (eQEP) modules supporting CW/CCW modes of operation

Embedded Graphics Generator (EPG)
