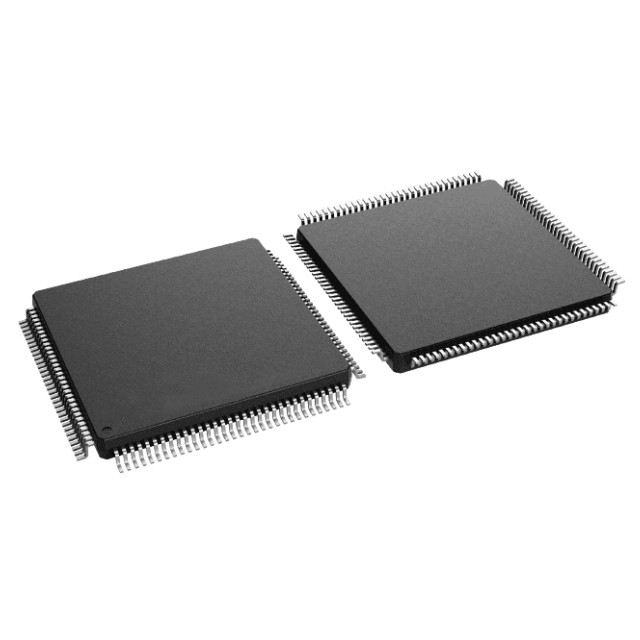

Commodity Model:F28P550SJ6PDTR

Trade Name:C2000 Real-Time Microcontrollers

Brand:TI

Particular Year:25+

Package:TQFP-128

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
F28P550SJ6PDTR
Package
TQFP-128
Describe
C2000™ 32-Bit 150MHz Fixed-Point Microcontroller

Product Description

F28P550SJ6PDTR is C2000™ real-time microcontroller of scalable, ultra-low latency devices designed for efficiency in power electronics, including but not limited to: high power density, high switching frequencies, and supporting the use of GaN and SiC technologies.


Feature Of F28P550SJ6PDTR

Real-time processing:

150MHz C28x 32-bit DSP CPU

Equivalent to 300MHz Arm® Cortex®-M7 based device on real-time signal chain performance (see the Real-time Benchmarks Showcasing C2000™ Control MCU’s Optimized Signal Chain Application Note

IEEE 754 single-precision Floating-Point Unit (FPU32)

Trigonometric Math Unit (TMU)

Support for Nonlinear Proportional Integral Derivative (NLPID) control

CRC Engine and Instructions (VCRC)

Programmable Control Law Accelerator (CLA)

150MHz

Equivalent to 200MHz Arm® Cortex®-M7 based device on real-time signal chain performance (see the Real-time Benchmarks Showcasing C2000™ Control MCU’s Optimized Signal Chain Application Note

IEEE 754 single-precision floating-point instructions

Executes code independently of main CPU

On-chip memory

1088KB of flash (ECC-protected) across five independent banks

Four 256KB banks

One 64KB bank, ideal of LFU/Bootloaders/data

8KB of OTP (One Time Programmable flash memory)

133KB of RAM (ECC/Parity protected)

Security

Secure Boot

JTAG Lock

Advanced Encryption Standard (AES) accelerator

Unique Identification (UID) number

Clock and system control

Two internal 10MHz oscillators

Crystal oscillator or external clock input

Windowed watchdog timer module

Missing clock detection circuitry

Dual-clock Comparator (DCC)

3.3V I/O design

Internal VREG generation allows for single-supply design

Brownout reset (BOR) circuit

5V fail-safe and tolerant capability on 4 GPIOs for PMBUS/I2C support

Configurable 1.35V VIH on 4 GPIOs

System peripherals

6-channel Direct Memory Access (DMA) controller

91 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins (22 shared with Analog)

17 digital inputs on analog pins

Enhanced Peripheral Interrupt Expansion (ePIE)

Multiple low-power mode (LPM) support

Communications peripherals

One Power-Management Bus (PMBus) interface

Fast Plus Mode Support - 1MHz SCL

5V/3.3V/1.35V VIH support on select pins

Two Inter-integrated Circuit (I2C) interfaces

Two Controller Area Network with Flexible Data-Rate (CAN FD/MCAN) bus port

4KB message RAM per MCAN module, independent of system memory

Ability to re-use RAM for CPU data variables if MCAN is not used

One Universal Serial Bus (USB 2.0 MAC + PHY)

Two Serial Peripheral Interface (SPI) ports

Three UART-compatible Serial Communication Interface (SCI)

One UART-compatible Local Interconnect Network (LIN) interface

Fast Serial Interface (FSI) with one transmitter and one receiver (up to 200Mbps)

Analog system

Five 3.9MSPS, 12-bit Analog-to-Digital Converters (ADCs)

Up to 39 external channels (includes one gpdac output)

Four integrated Post-Processing Blocks (PPB) per ADC

Four windowed comparators (CMPSS) with 12-bit reference Digital-to-Analog Converters (DACs)

Digital glitch filters

Low DAC output to pin capability on CMPSS1

One 12-bit buffered DAC output

Three Programmable Gain Amplifiers (PGAs)

Unity gain support

Inverting and non-inverting gain mode support

Programmable output filtering

Enhanced control peripherals

24 ePWM channels with 12 channels that have high-resolution capability (150ps resolution)

Integrated dead-band support

Integrated hardware trip zones (TZs)

Two Enhanced Capture (eCAP) modules

Three Enhanced Quadrature Encoder Pulse (eQEP) modules with support for CW/CCW operation modes

Embedded Pattern Generator (EPG)


Applications Of F28P550SJ6PDTR

Motor drives

Appliances

Hybrid, electric & powertrain systems

Solar & EV charging

Digital power

Body electronics & lighting

Test & measurement


Associated Products

Model

Brand

Package

Quantity

Describe

F280045PZSR

TI

LQFP-100

2000

32-Bit 100MHz C2000™ C28x Real-Time Microcontrollers

F280045PMSR

TI

LQFP-64

2000

32-Bit 100MHz C2000™ C28x Real-Time Microcontrollers

F280041PMSR

TI

LQFP-64

2000

32-Bit 100MHz C2000™ C28x Real-Time Microcontrollers

F28P550SJ6PZR

TI

LQFP-100

2000

C2000™ 32-Bit 150MHz Fixed-Point Microcontroller

F28P550SJ6PMR

TI

LQFP-64

2000

C2000™ 32-Bit 150MHz Fixed-Point Microcontroller

F2800157EPHPRQ1

TI

HTQFP-48

5000

C2000 Real-time Microcontroller - Automotive Grade C2000™ 32-bit MCU, HTQFP-48

F2800156EPHPQ1

TI

HTQFP-48

5000

C2000 Real-time Microcontroller - Automotive Grade C2000™ 32-bit MCU, HTQFP-48

TMS320F28379DZWTS

TI

NFBGA-337

2000

Dual-Core C2000™ 32-Bit Real-Time Microcontrollers

F28P559SJ9PMRQ1

TI

LQFP-64

5000

32-bit C2000™ C28x Fixed-Point Microcontroller IC, LQFP-64

F28P559SJ2PMRQ1

TI

LQFP-64

5000

150MHz, 32-bit C2000 Realtime Microcontroller, LQFP-64
