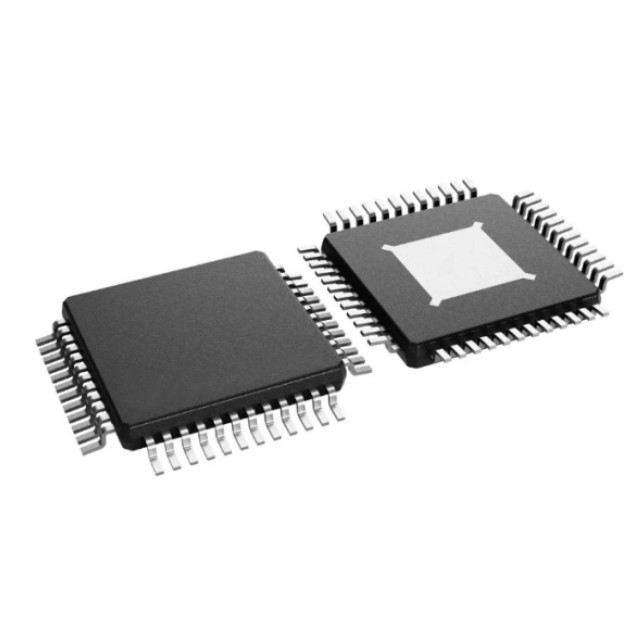

F2800157EPHPRQ1: 120MHz, 32-bit Lockstep Dual TMS320C28x Core, C2000 Real-Time Microcontroller, HTQFP-48

Basic Information:

Model: F2800157EPHPRQ1

Package: HTQFP-48

Type: C2000 Realtime Microcontroller

Product Details: Automotive-grade C2000™ 32-bit MCU with HRPWM, CAN-FD, lock-step ASIL B, Level 0 and Level 1, 120MHz frequency, 256KB flash memory

F2800157EPHPRQ1 Specifications:

Product Category: 32-bit Microcontrollers - MCUs

Family: TMS320F2800157

Mounting Style: SMD/SMT

Package/Case: HTQFP-48

Core: C28x

Program Memory Size: 256 kB

Data RAM Size: 36 kB

Data Bus Width: 32 bit

ADC Resolution. 12 bit

Maximum clock frequency: 120 MHz

Number of inputs/outputs: 27 I/O

Supply voltage - min: 1.14 V

Supply voltage - max: 1.32 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: +150 °C

DAC resolution: 12 bit

Interface types: CAN, I2C, SCI, SPI, UART

Number of ADC channels: 18 channels Number of channels

Number of timers/counters: 3 Timer

Operating supply voltage: 1.2 V

F2800157EPHPRQ1 Applications:

HVAC Compressor Modules

Headlamps

DC/DC Converters

Inverters and Motor Controls

On-Board Chargers (OBC) and Wireless Chargers

Industrial Motor Drives

Motor Controls

Digital Power Supplies

Sensing and Signal Conditioning
