The SPC56EL60L3CBFQY 32-bit microcontroller is the latest in integrated automotive application controllers. It belongs to an expanding group of automotive-specific products designed for electro-hydraulic power steering (EHPS), electric power steering (EPS) and airbag applications.The SPC56EL60L3CBFQY automotive controller has an advanced and cost-effective main processor core that is compliant with the Power Architecture embedded class standard. Running at up to 120 MHz, it provides high-performance processing and is optimised for low power consumption. It takes full advantage of the development infrastructure available for today's Power Architecture devices and supports software drivers, operating systems, and configuration code to assist in user implementation.

Product Attributes

Core Processor: e200z4d

Core specification: 32-bit dual-core

Speed: 120MHz

Connectivity: CANbus, LINbus, SCI, SPI, UART/USART

Peripherals: DMA, LVD, POR, PWM, WDT

Number of I/O: 57

Programme memory capacity: 1MB (1M x 8)

Programme Memory Type: Flash

EEPROM Capacity: -

RAM Size: 128K x 8

Voltage - Supply (Vcc/Vdd) : 3V ~ 3.63V

Data Converter: A/D 32x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

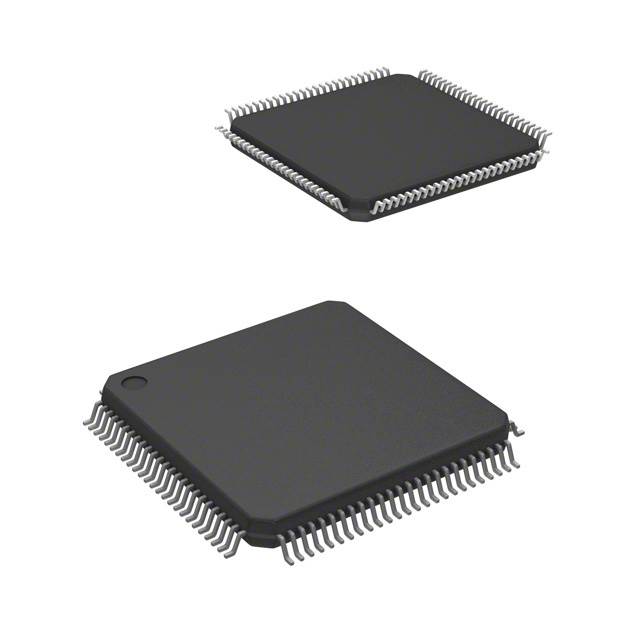

Package/Case: 100-LQFP

Supplier Device Package: 100-LQFP (14x14)

Applications

Automotive Chassis

Safety Applications
