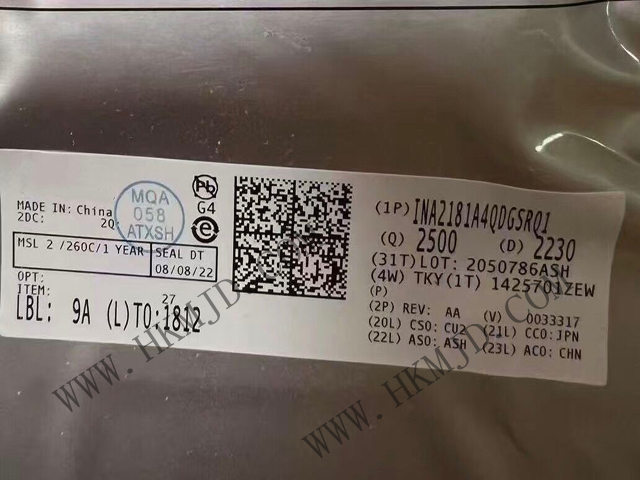

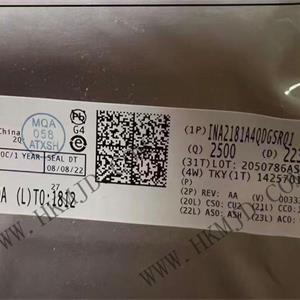

For picture reference, please see the specifications
< >

Commodity Model:INA2181A4QDGSRQ1

Trade Name:Current Detection Amplifier

Data Manual:INA2181A4QDGSRQ1.pdf

Brand:TI

Particular Year:22+

Package:VSSOP10

Delivery Date:New and Original

Stock: 10000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
INA2181A4QDGSRQ1
Package
VSSOP10
Describe
Automotive, Bidirectional, Low- and High-side Voltage Output, Current-Sense Amplifiers

Product Description

The INA2181A4QDGSRQ1 current sense amplifiers are designed for cost-optimised solutions. These devices are a series of bi-directional current sense amplifiers (also known as current shunt monitors) that sense the voltage drop across the current sense resistors in a common mode voltage range of -0.2V to +26V independent of the supply voltage.


Product specifications

Amplifier Type Current Sensing

Number of circuits 2

Output type Full swing

Slew rate 2V/µs

Gain bandwidth product 105 kHz

-3db Bandwidth 105 kHz

Current - input bias 75 µA

Voltage - input compensation 100 µV

Current - Supply 356µA

Voltage - Span (min) 2.7 V

Voltage - Span (Max) 5.5 V

Operating Temperature -40°C ~ 125°C (TA)

Mounting Type Surface Mount Type

Package/Housing 10-TFSOP, 10-MSOP (0.118", 3.00mm wide)

Supplier Device Package 10-VSSOP


Applications

-Motor control

-Battery monitoring

-Power management

-Lighting control

-Overcurrent detection

Associated Products

Model

Brand

Package

Quantity

Describe

INA2180A1QDGKRQ1

TI

VSSOP-8

30000

AEC-Q100, 26V, dual channel, 350kHz current sensing amplifier

INA169NA/3K

TI

SOT-23-5

10000

2.7V to 60V, 440kHz variable gain current sense amplifier

INA193AIDBVR

TI

SOT-23-5

9000

-16 to 80V, 500kHz current sense amplifier

LT1999HS8-20

ADI

SOIC-8

3000

High-voltage, bidirectional current detection amplifier

INA750BIREMR

TI

VQFN-14

2000

110V 35A integrated-shunt high-precision current-sense amplifier with enhanced PWM rejection

INA230AIRGTR

TI

VQFN-16

60000

36V, 16-bit, I²C output current, voltage and power monitor with alarm function

AD8412ABRMZ

ADI

MSOP-8

3000

A 1.8MHz high-bandwidth current-aware amplifier with PWM suppression and 10V/V gain

LT6108IDCB-1

ADI

DFN-8

5000

High-end current detection amplifier with reference and comparator

MAX40204ANA

Maxim

WLP-8

2000

Current Sense Amplifier 1 Circuit Single-Ended 8-WLP (1.47x0.85)

AD8410AWBRMZ-10

ADI

MSOP-10

2000

-2 V to 70 V wide input voltage range, 2.2 MHz high bandwidth, current sense amplifier with PWM rejection and 20 V/V gain
