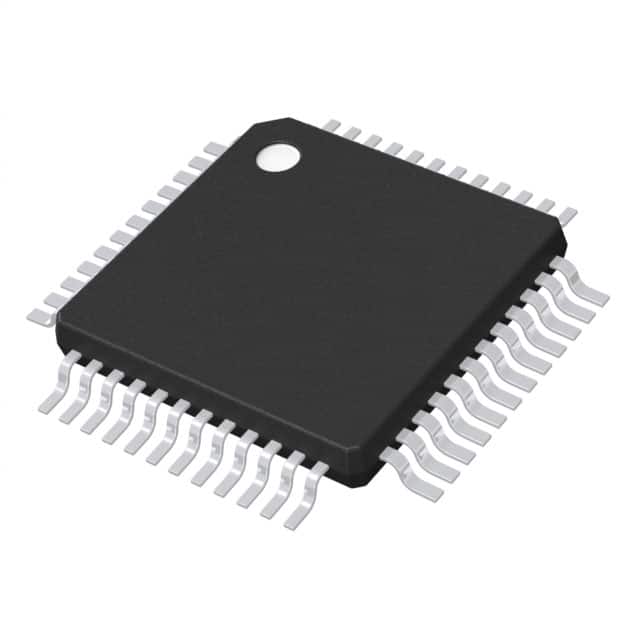

The STM32G474CET3 is a mixed-signal microcontroller (MCU) that combines a 32-bit Arm® Cortex-M4 core (with FPU and DSP instructions) operating at 170MHz. The device is available in a 48-pin LQFP package. The STM32G4 series is highly compatible with the STM32F3 series, ensuring excellent efficiency when designing application derivatives at different performance levels.

Product Specifications:

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 170MHz

Connection capability: CANbus, I²C, IrDA, LINbus, QSPI, SPI, UART/USART

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 38

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 128K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 3.6V

Data converter: A/D 20x12b; D/A 7x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

Package/housing: 48-LQFP

Supplier Package: 48-LQFP (7x7)

Basic product number: STM32G474
