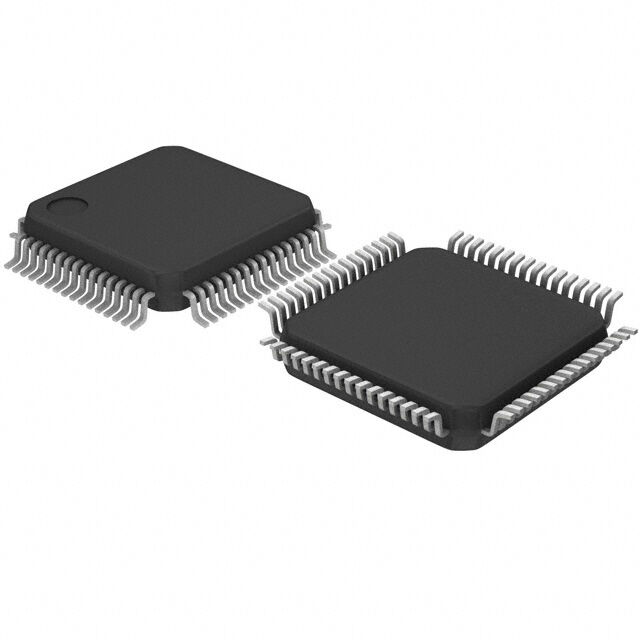

For picture reference, please see the specifications
< >

Commodity Model:CY8C4148AZI-S455

Trade Name:ARM Microcontrollers - MCU

Brand:Cypress

Particular Year:25+

Package:TQFP-64

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
CY8C4148AZI-S455
Package
TQFP-64
Describe
ARM® Cortex®-M0 null microcontroller IC 32-bit 48MHz 256KB (256K x 8) flash memory 64-TQFP (10x10)

Product Description

The CY8C4148AZI-S455 is a 32-bit MCU in the PSoC 4 4100S Plus series, featuring a 48 MHz Arm Cortex-M0+ core, 256 KB Flash, and 32 KB SRAM, along with a programmable analog/ digital peripherals and a hardware CapSense touch sensing unit, packaged in a 64-TQFP (10 mm × 10 mm, 0.5 mm pitch), suitable for industrial, home appliance, and automotive applications.


CY8C4148AZI-S455 Key Features

• Single-cycle 32-bit Arm Cortex-M0+ @ 48 MHz

• 256 KB Flash (with ECC), 32 KB SRAM

• 54 GPIOs, all supporting CapSense and 5 V-tolerant

• Dual operational amplifiers + 12-bit 1 Msps SAR ADC + 2× low-power comparators

• 8×16-bit TCPWM (timer/counter/PWM/quadrature decoding)

• 5× configurable serial communication blocks (SCB): arbitrarily mappable as I²C/SPI/UART

• Integrated hardware CapSense touch controller, supporting waterproofing and proximity sensing

• 1.71 V–5.5 V single power supply, -40 °C to +105 °C operating temperature

• Low power consumption: Run 60 µA/MHz, Deep-Sleep 2.5 µA, Hibernate 150 nA

• Security features: Flash protection, debug lock, CRC verification


CY8C4148AZI-S455 Key Specifications

CPU: 48 MHz Cortex-M0+

Flash: 256 KB

SRAM: 32 KB

GPIO: 54

ADC: 12-bit SAR, 1 Msps

Timers: 8×16-bit TCPWM

Communication: 5×SCB (I²C/SPI/UART configurable)

Touch: Hardware CapSense controller

Operating Voltage: 1.71 V – 5.5 V

Operating Temperature: -40 °C to +105 °C

Package: 64-TQFP (10 mm × 10 mm, 0.5 mm pitch)
