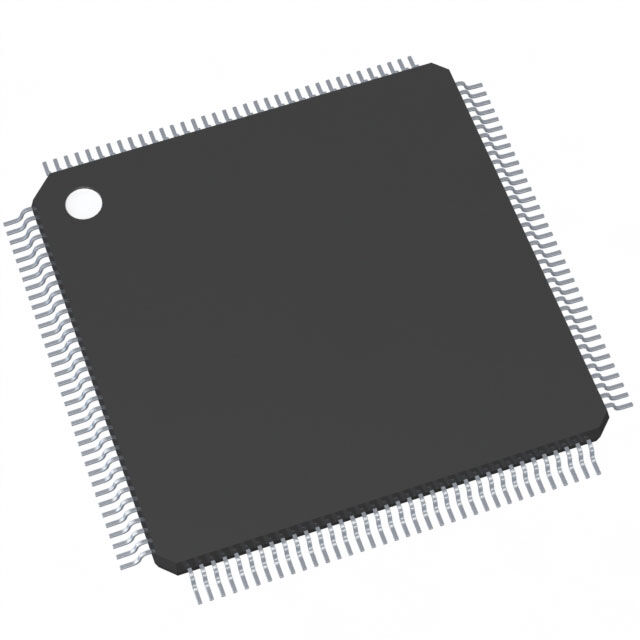

CYT4BB7CEBQ0AESGS is Infineon's fourth-generation Traveo™ T2G automotive microcontroller based on a dual-core Arm® Cortex®-M7 (250 MHz) + Cortex®-M0+ (100 MHz) architecture. The chip integrates 4.0625 MB on-chip Flash, 768 KB SRAM, 256 KB EEPROM, and a rich set of analog, communication, and security peripherals, packaged in a 144-TEQFP (20 mm × 20 mm, 0.5 mm pitch) surface-mount package. It is certified to AEC-Q100 Grade 1 and is suitable for automotive applications requiring real-time performance and functional safety, such as body gateways, domain controllers, BMS, and motor control.

Product Specifications (CYT4BB7CEBQ0AESGS)

Core: Dual-core: Cortex-M7 @ 250 MHz + Cortex-M0+ @ 100 MHz

Storage: 4.0625 MB Flash (with ECC), 768 KB SRAM, 256 KB EEPROM

GPIO: Up to 114 pins, 5 V-tolerant

Operating Voltage: 2.7 V – 5.5 V

Operating Temperature: -40 °C to +125 °C (Automotive Grade 1)

Analogue peripherals: 12-bit ADC 2.5 MSPS × 3, 12-bit DAC, OPAMP, comparator

Communication interfaces: 2×CAN-FD (ISO 16845), 10×Flexcomm (UART/SPI/I²C/I²S), USB 2.0 FS/HS, Ethernet MAC, SDIO

Security features: AES-128/256, SHA-2, TRNG, secure boot, functional safety documentation ASIL-B

Package: 144-TEQFP (20 mm × 20 mm, 0.5 mm pitch)
